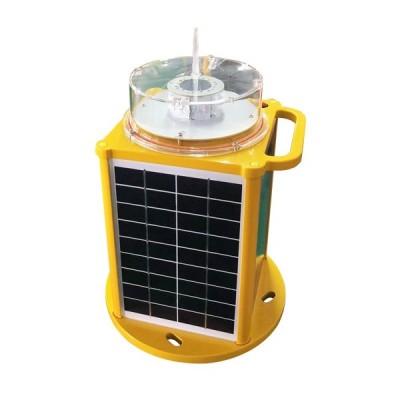

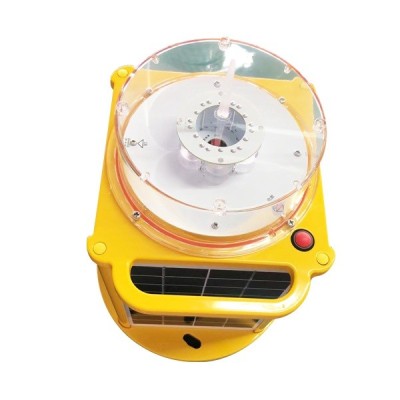

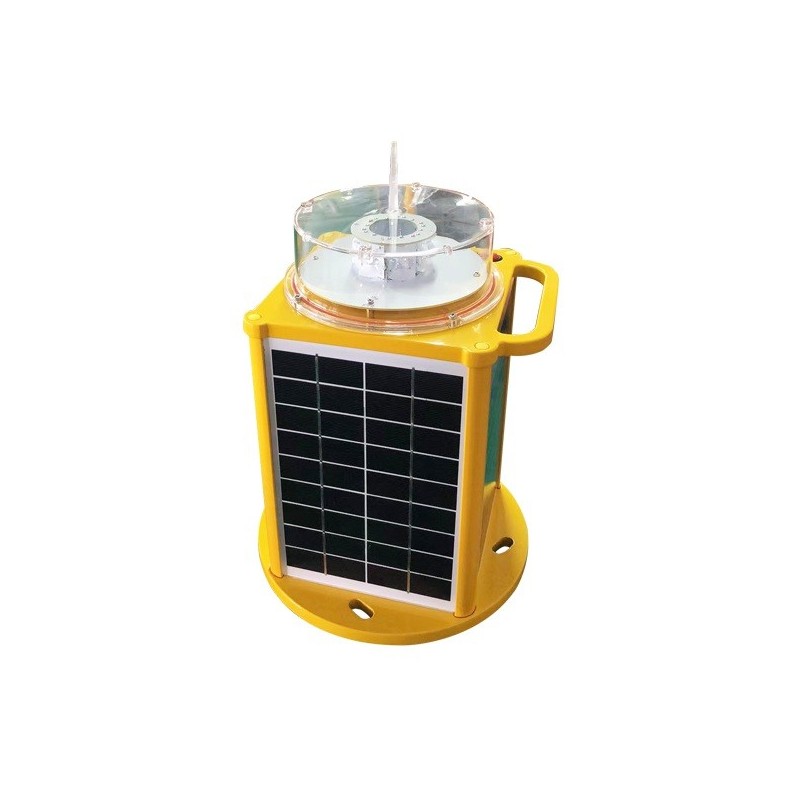

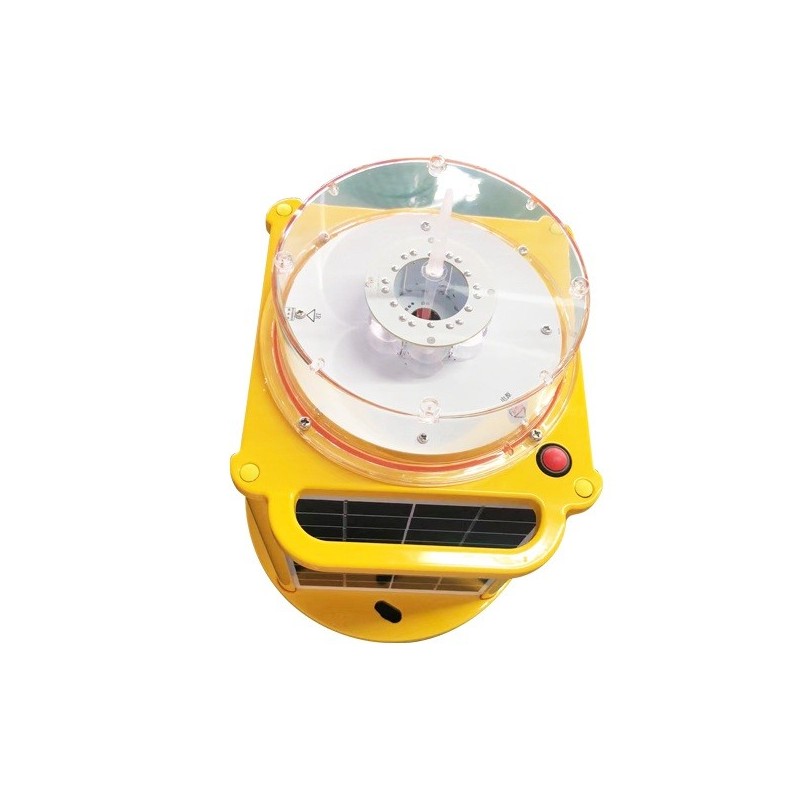

deStellys ASTRA 4-5MN Marine Lantern
ASTRA is deStellys’ solar-powered navigation light designed for demanding environments and critical infrastructure. Larger and more powerful than the MARIS, it offers a range of up to 10 nautical miles and incorporates advanced technologies: high-efficiency monocrystalline solar panels, a long-life lithium battery, and remote infrared programming that allows flash characteristics to be modified without opening the unit.
Engineered to withstand 240 km/h winds and operate in temperatures ranging from -40°C to +75°C, ASTRA is the ideal choice where reliability is non-negotiable.
deStelly MARIS APPLICATIONS
Marine buoy marking: Lateral, cardinal and special marks in open water.
Inland & lake waterways: IALA channel marking, locks, anchorage zones.
Ports & terminals: Harbour entrance signaling, pier heads, jetties.
Offshore installations: Platforms, wind farms, aquaculture areas at sea.
AVAILABLE COLORS
Red, Green, Yellow, White, Blue
All colors are fully compliant with IALA specifications
PHOTOMETRIC PERFORMANCE
Visible Range 4-5 NM (AT@0.74)
Vertical Divergence 7+ deg
Horizontal Coverage 360 deg
Operation Mode Dusk-to-dawn Automatically (Built-in photocell)
ELECTRICAL CHARACTERISTICS
Light Source High Performance LED
Battery Standard 20Ah, Extended 30Ah
Battery type Lithium-ion battery
Special Features Switch ON/OFF, External Charge Port, GPS Synchronization
SOLAR CELLS
Technology Mono-crystalline Silicon
Power Output 4 x 5 Watt

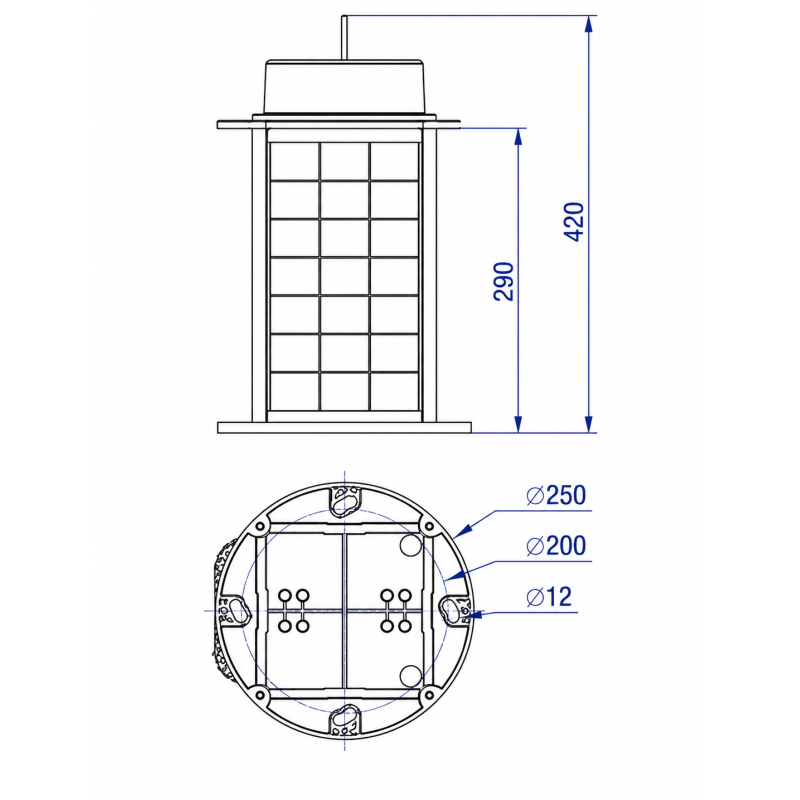

MECHANICAL CHARACTERISTICS
Lens Diameter 155 mm
Lens Material UV protected Polycarbonate
Body Material Power Coated Aluminum
Mounting 4 holes on diameter 200 mm bolt M10 pattern
Dimension 250×250×370 mm
Weight Standard 5.8 kg / Extended 6.4 kg
Waterproofing IP68
PROGRAMMING & CONFIGURATION
IALA Flash Patterns 360+ Flashing Modes
Programming Method InfraRed Remote Controller
CERTIFICATIONS & COMPLIANCE
Regulations IALA E-200-1; CE
Warranty 2 years
Life Expectancy 100.000 hours
deStellys ASTRA
Data sheet
- Weight
- 5.5kg
- Diameter
- 250mm
- Height
- 270mm
