Solar Marine Lanterns Comparison Medium and High Range
Complete technical specification matrix
Complete technical specification matrix
| Product / Configuration | Sealite SL-75 |
Sealite SL-C310 Compact |
Sealite SL-C310 Standard |
Sealite SL-C310 Extended |

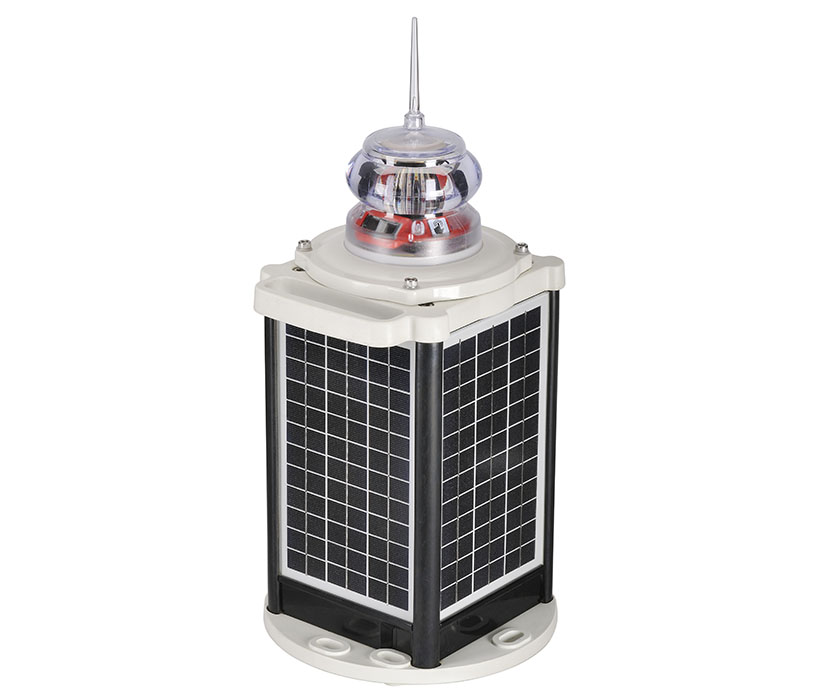

Sealite SL-C510 Compact |

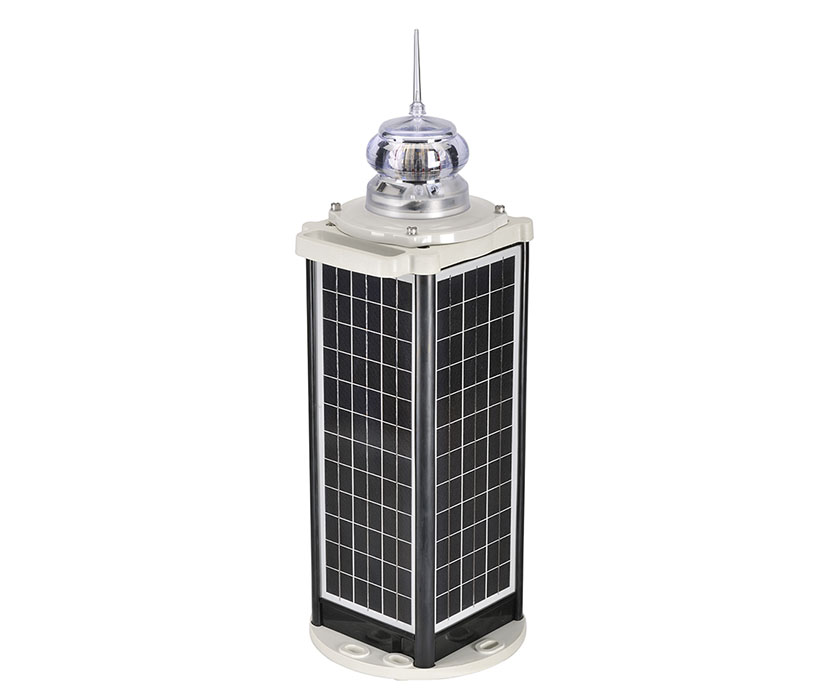

Sealite SL-C510 Extended |

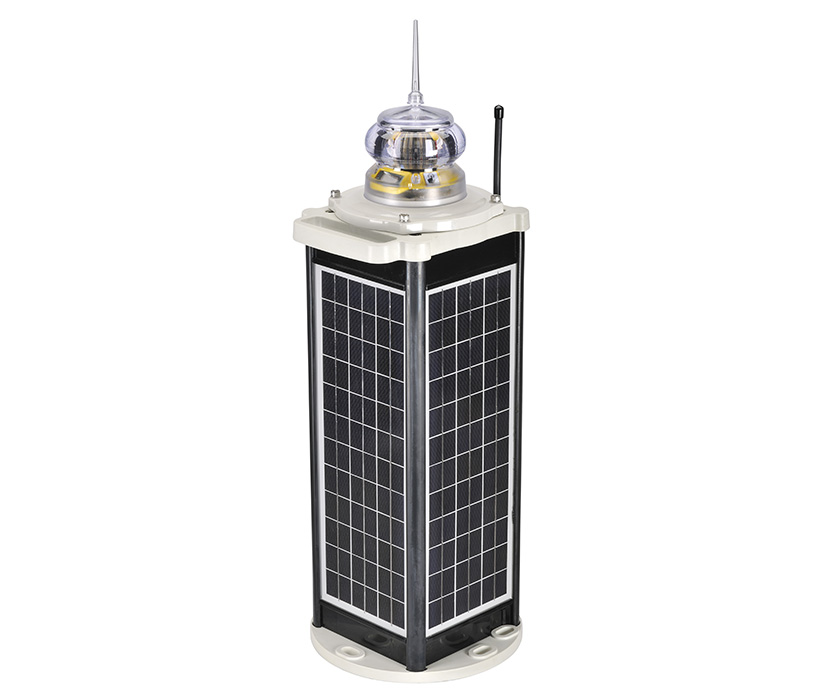

Sealite SL-C510 AIS Chassis |
Sabik M850 60X |
Sabik M850 96E |
Sabik M860 96E |
Sabik M860 186LC |
Sabik M860 200BC |
MSM MCL360-S |
MSM MCL360-S Plus |
MSM MCL360-M |
MSM MCL360-L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| đ PRODUCT OVERVIEW & CONFIGURATION | ||||||||||||||||
| Product Image |  |
 |
 |
|
 |
 |
 |
 |
|
 |
|
|
 |
|
 |
 |
| Configuration | Standard | Compact | Standard | Extended | Compact | Extended | AIS Chassis | 60Wh | 96Wh | 96Wh | 186Wh | 200Wh | Small | Small+ | Medium | Large |
| ⥠VISIBLE RANGE & INTENSITY | ||||||||||||||||
| Visible Range | 3-5 NM | 3-5 NM | 3-5 NM | 3-5 NM | 5-9 NM | 5-9 NM | 5-9 NM | 3-6 NM | 3-6 NM | 4-7 NM | 4-7 NM | 4-7 NM | Up to 8 NM | Up to 8 NM | Up to 9 NM | Up to 11 NM |
| Max Intensity (White) | 131 cd | 156 cd | 156 cd | 156 cd | 1150 cd | 1150 cd | 1150 cd | 445 cd | 445 cd | 445 cd | 445 cd | 445 cd | 321 cd | 321 cd | 747 cd | 2087 cd |
| Vertical Divergence | 7° | >7° | >7° | >7° | 5° | 5° | 5° | 8° | 8° | 8° | 8° | 8° | 5°, 8°, 10° | 5°, 8°, 10° | 5°, 8°, 10° | 5°, 8°, 10° |
| đ ELECTRICAL CHARACTERISTICS | ||||||||||||||||
| Nominal Voltage | 3.6V | 12V | 12V | 12V | 12V | 12V | 12V | 6.3V | 6.3V | 6.3V | 12V | 8.4V | 12V | 12V | 12V | 12V |
| Battery Type | NiMH | SLA | SLA | SLA | Gel SLA | Gel SLA | Gel SLA | SLA | SLA | SLA | SLA | SLA | Lead Crystal | Lead Crystal | Lead Crystal | Lead Crystal |
| Battery Capacity (Ah) | 17.2 | 12 | 24 | 24 | 12 | 24 | 24 | 10 | 16 | 15 | 15.5 | 24 | 4.8 | 16.9 | 16.9 | 33.8 |
| Autonomy | >30 days | >60 nights | >110 nights | >110 nights | >110 nights | >110 nights | >110 nights | Variable | Variable | Variable | Variable | Variable | up to 200h | up to 700h | up to 350h | up to 500h |
| âī¸ SOLAR MODULES | ||||||||||||||||
| Solar Module Type | Monocryst. | Monocryst. | Monocryst. | Monocryst. | Monocryst. | Monocryst. | H-efficiency | H-efficiency | H-efficiency | H-efficiency | H-efficiency | Monocryst. | Monocryst. | Monocryst. | Monocryst. | Monocryst. |
| Solar Power (W) | 5 W | 20 W | 28 W | 33.6 W | 20 W | 33.6 W | 33.6 W | 6.8 W | 6.8 W | 15.2 W | 15.2 W | 15.2 W | 14.8 W | 14.8 W | 21.2 W | 36.4 W |
| đ MECHANICAL CHARACTERISTICS | ||||||||||||||||
| Height (mm) | 314 | 484 | 581 | 640 | 492 | 660 | 648 | 226 | 226 | 328 | 328 | 328 | 326 | 380 | 406 | 571 |
| Weight (kg) | 2.5 | 9.1 | 13.9 | 14.6 | 9.2 | 16.0 | 15.2 | 4.5 | 5.3 | 6.4 | 9.5 | 10.2 | 8 | 11 | 11 | 18 |
| Waterproofing | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 | IP68 |
| đī¸ SMART FEATURES & CONNECTIVITY | ||||||||||||||||
| Flash Patterns | 310+ | 310 | 310 | 310 | 310 | 310 | 310 | Progr | Progr | Progr | Progr | Progr | 256 | 256 | 256 | 256 |
| GPS Synchronization | Optional | Standard | Standard | Standard | Standard | Standard | Standard | Optional | Optional | Optional | Optional | Optional | Standard | Standard | Standard | Standard |
| GSM Connectivity | - | - | - | - | - | - | - | - | - | - | - | Optional | Optional | Optional | Optional | Optional |
| Satellite Connectivity | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional | Optional |
| AIS Capability | - | - | - | - | - | - | â AIS Type 1 | - | - | - | - | - | - | - | â AIS Type 1 | â AIS Type 1/3 |
| IALA Compliant | â | â | â | â | â | â | â | â | â | â | â | â | â | â | â | â |
