FullOceans GPS Tracking system

Connect your buoys & optimize management and maintenance

Monitor GPS position of buoys

Detect mooring failures

Detect possible damages from waves, collisions, theft …

Alert notifications by Email

Connectivity

Sigfox

• Energy efficient transceiver
• Internal omnidirectional antenna
• Bi-directional communication

Extended Sigfox Worldwide coverage

• All regions: RC1/RC2/RC3/RC4/RC5/RC6/RC7
• Up to 15 km from coastline
• www.sigfox.com/en/coverage

Characteristics

Sensor

• 3-axis accelerometer
• Magnetic operated switch
• Battery voltage

All antennas are internal

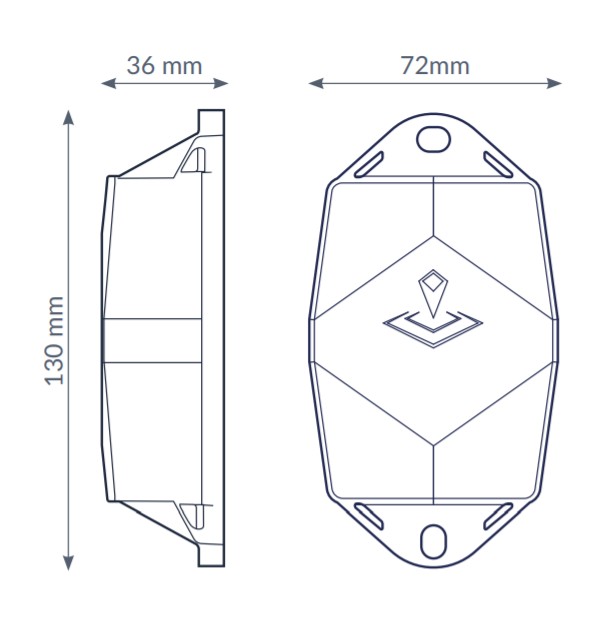

Size: 130x72x36 mm

Weight: 200 gram

Color: Translucent black

UV-stabilized

Water & dust resistance

IP68 & IP69K with automotive-grade venting membrane

Impact resistance: IK10 (frontal impact)

Operating temperature: -20 to 60°C

Storage temperature: -40 to 85°C

Battery

• Replaceable battery pack (Li-SOCl2) 8 400 mAh 3.6 V
• 3 to 8 years battery life depending on operating mode

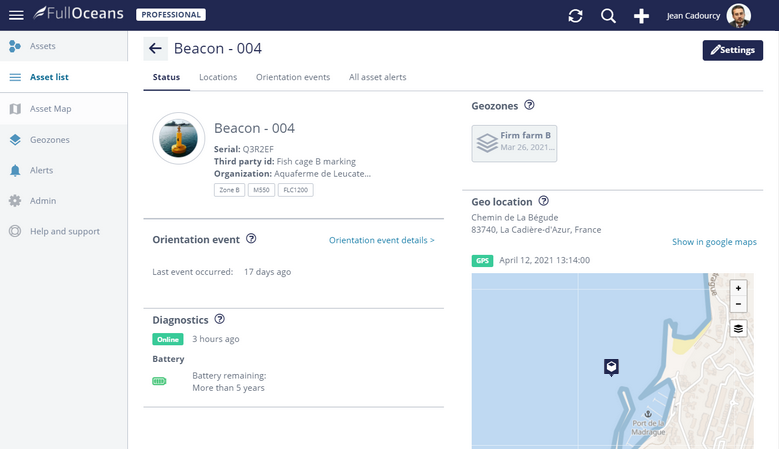

Online management & setting

GPS localization

• GPS position every 4 hours on standard setting (every hours on request)
• GeoZone definitions (circle or polygon)
• Alerts (email) when leaving/entering a GeoZone

Orientation events

• Major swinging changes (more than 50 degrees, other configurations available on request)
• Alerts (email) when reaching a defined configuration

And much more: customization of tracker-buoys, multi users, battery and offline alerts, global map of all trackers …

Download

FullOceans Tracker brochure (pdf)

Installation manual (pdf)

> LEARN MORE
