    Marine buoy diameter 2600mm for exposed condition & off shore project
    Marine buoy diameter 2600mm for exposed condition & off shore project
    Marine buoy diameter 2600mm for exposed condition & off shore project

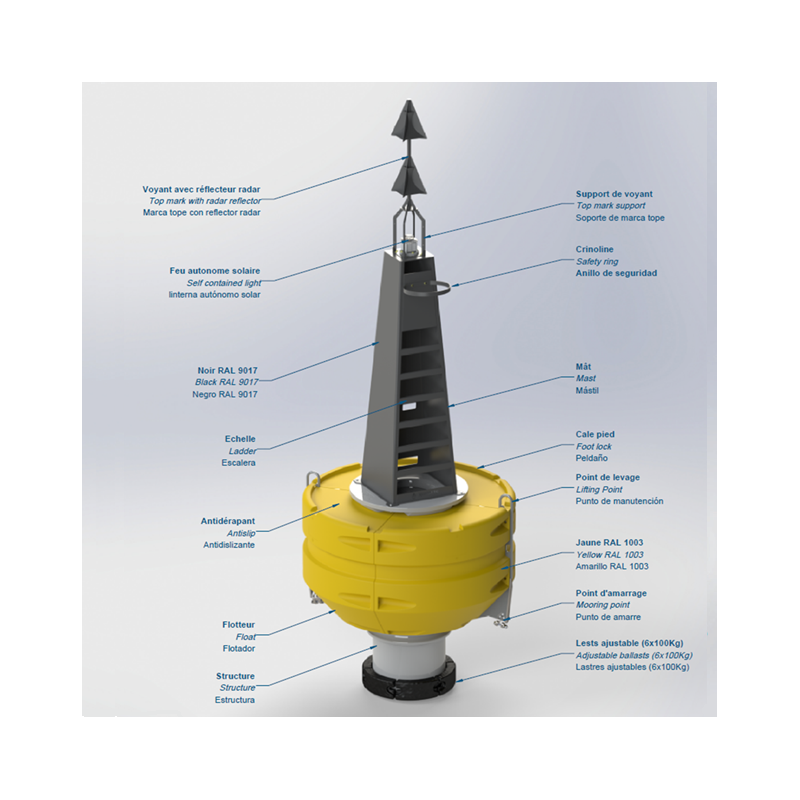

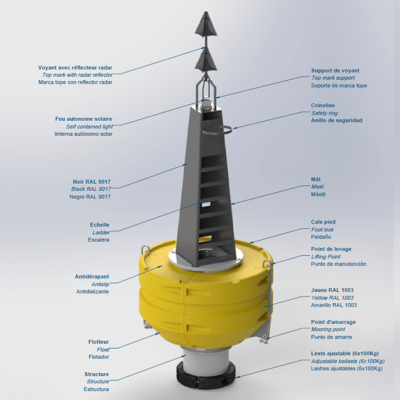

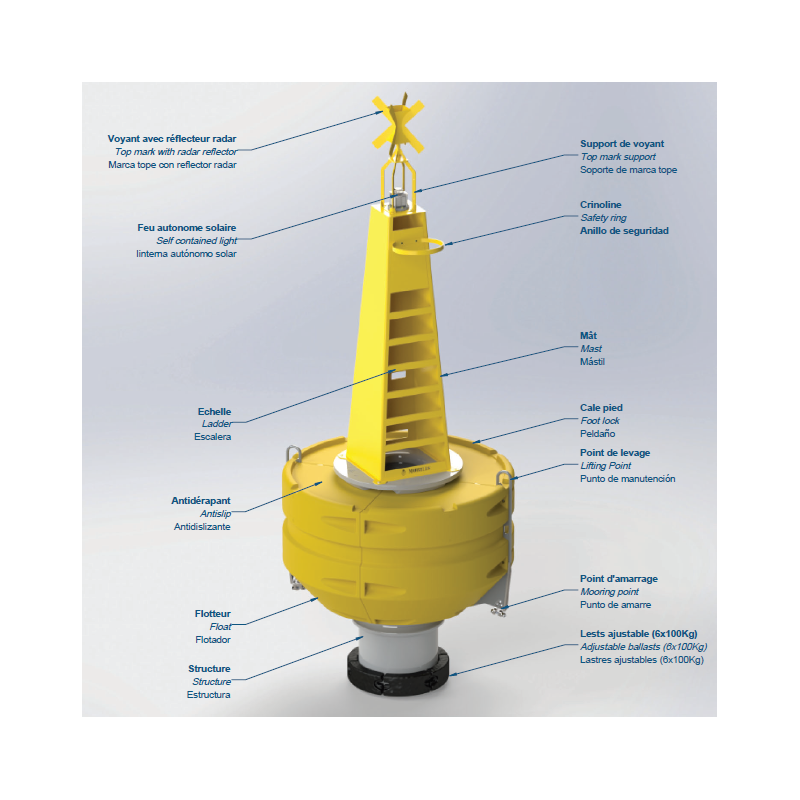

FLC2600 PE marine Offshore buoy / PE Structure

For highly exposed conditions and off-shore projects, the FLC2600 lateral buoy is ready to serve. The FLC2600 is designed with a 4 independent parts float and an aluminum mast and is capable to integrate solar pannels, high range marine lanterns, AIS ...

Guarantee safe & secure checkout

HIGH-QUALITY MATERIALS

Structure: PE Structure HD
Lifting and Mooring Points: S235 galvanized steel
Float: 4 independent floats UV-stabilized Polyethylene medium-density UV16 grade, thickness 22mm
Mast: Aluminium 5083/5086 marine grade
Colors: Pigments matching IALA specifications directly integrated into the polyethylene during rotational molding for no painting ever.
Ballasts: Cast Iron
Topmark: Aluminium 5083/5086 marine grade
Radar Reflector: Aluminium 5083/5086 marine grade
Eco-friendly: Recyclable polyethylene. Heavy metal-free. No ecological damages

Also available with simplified mast and polyethylene structure for a cost effective project.

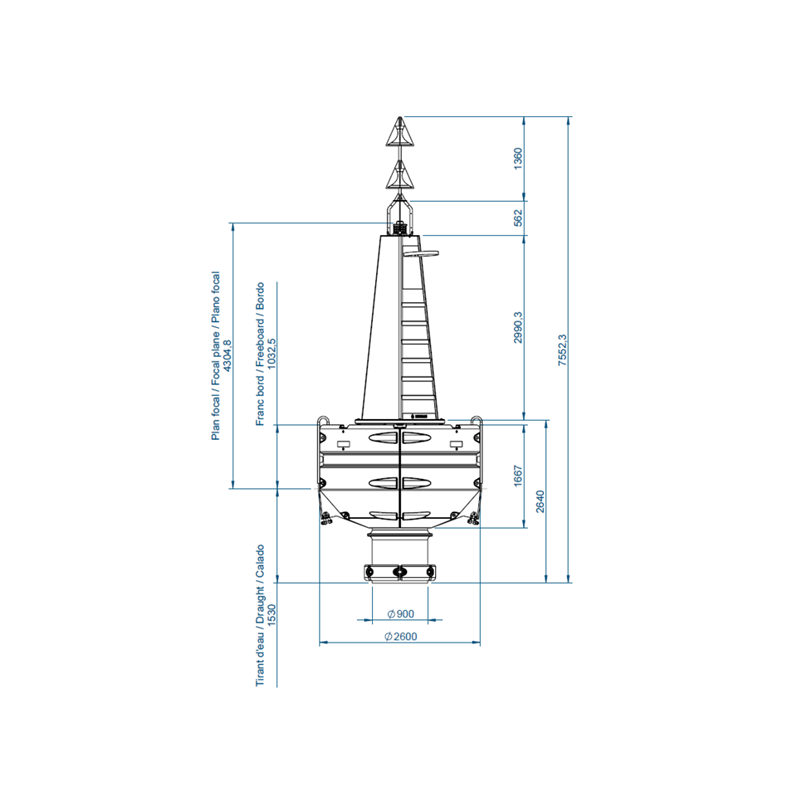

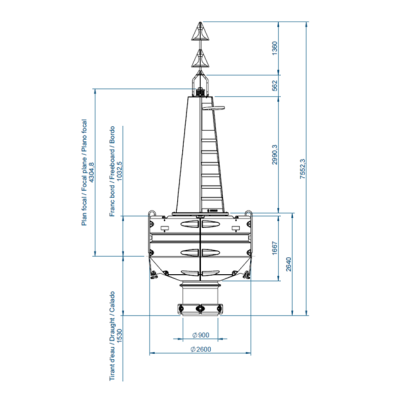

FLC2600PE

Data sheet

Diameter
2600
Volume
5720
Draught
1530
Freeboard
1032
Overall Height (with topmark)
7552
Mast
2990
Weight with ballast
1760
Visible area
6.1
Focal plane
4304
