FLC2400 lateral marine buoy

New product

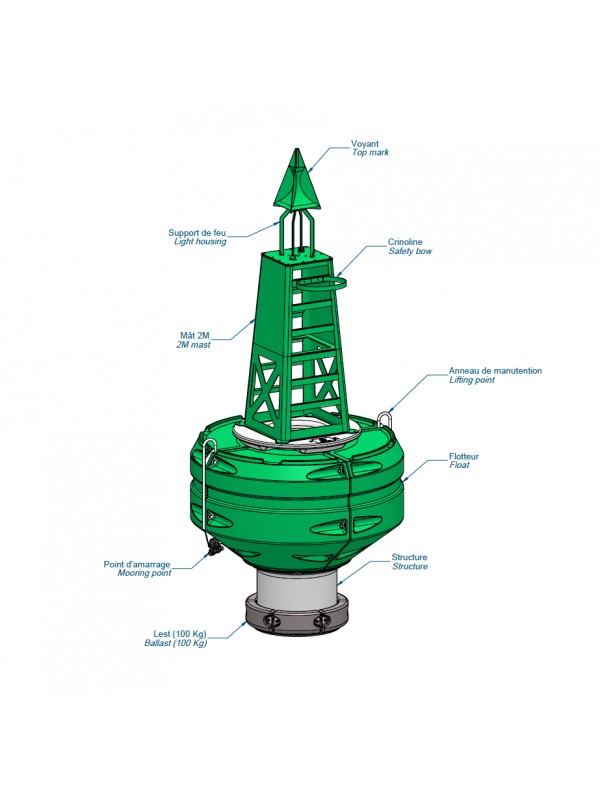

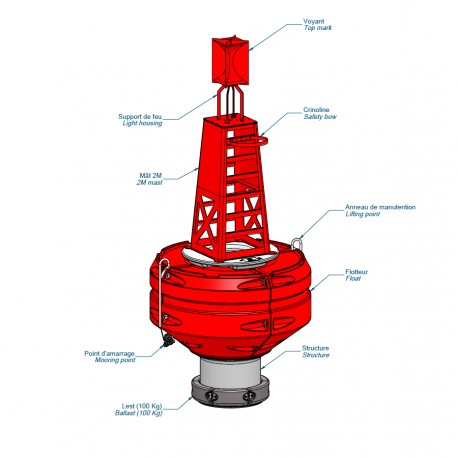

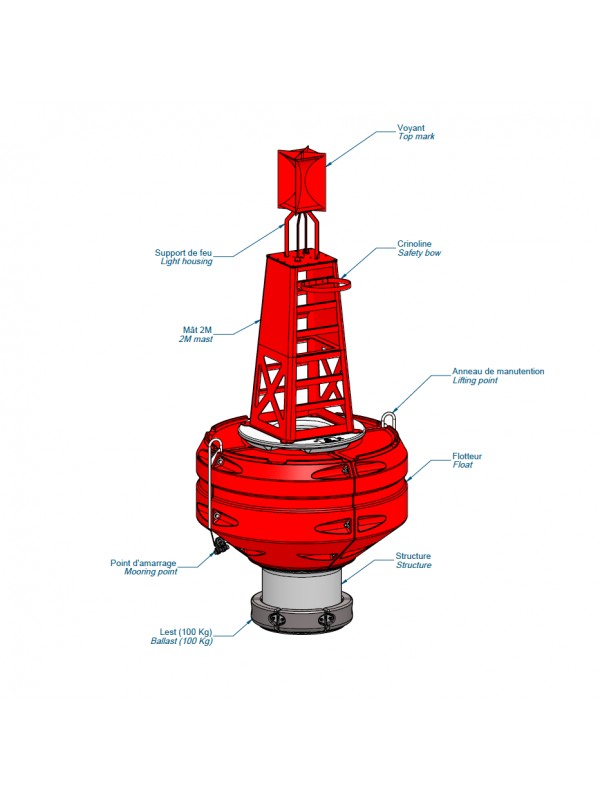

For exposed conditions and demanding projects, the FLC2400 lateral buoy is ready to serve. The FLC2400 is designed with a 4 independent parts float and an aluminum mast and is capable to integrate solar pannels, high range marine lanterns, AIS ...

More details

  • Starboard
  • Port

Add to wishlist

Data sheet

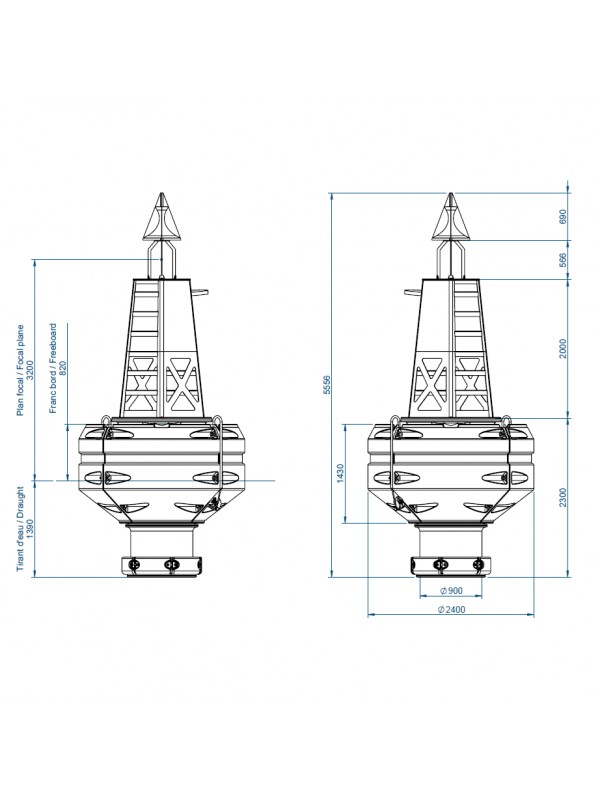

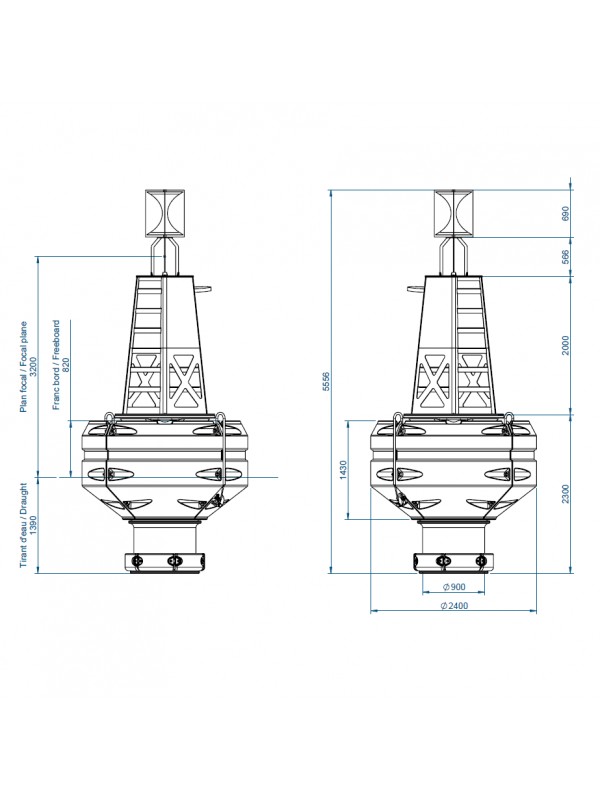

Diameter2400
Volume4000
Draught1390
Freeboard820
Overall Height (with topmark)5556
Mast2000
Weight with ballast1470
Visible area4.1
Focal plane3200

More info

HIGH-QUALITY MATERIALS

Structure: Polyethylene High Density
Lifting and Mooring Points: S235 galvanized steel
Float: UV-stabilized Polyethylene high-density UV15 grade, thickness 22mm
Mast: Aluminium 5083/5086 marine grade
Colors: Pigments matching IALA specifications directly integrated into the polyethylene during rotational molding for no painting ever.
Ballasts: Cast Iron
Topmark: Aluminium 5083/5086 marine grade
Radar Reflector: Aluminium 5083/5086 marine grade
Eco-friendly: Recyclable polyethylene. Heavy metal-free. No ecological damages

Download
