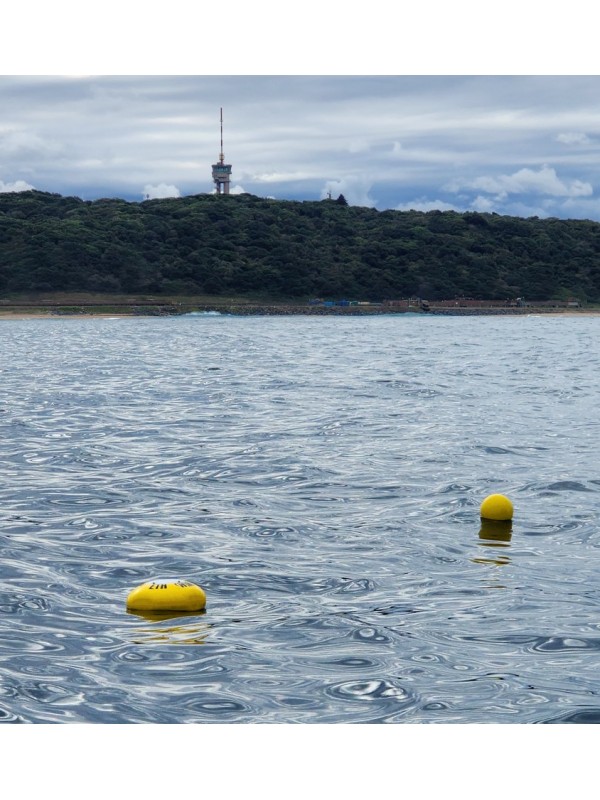

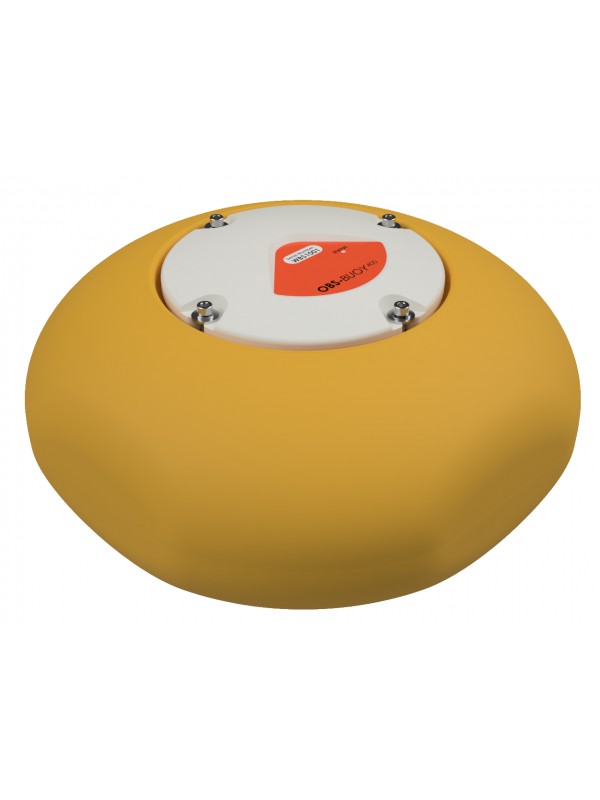

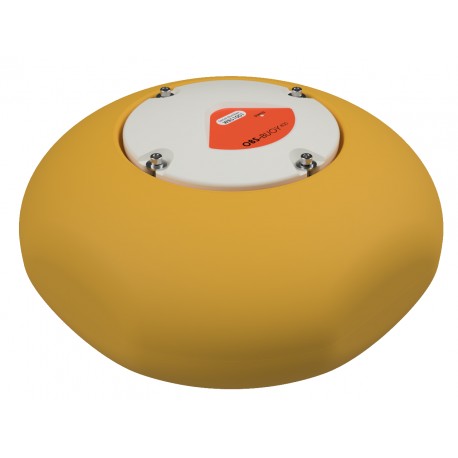

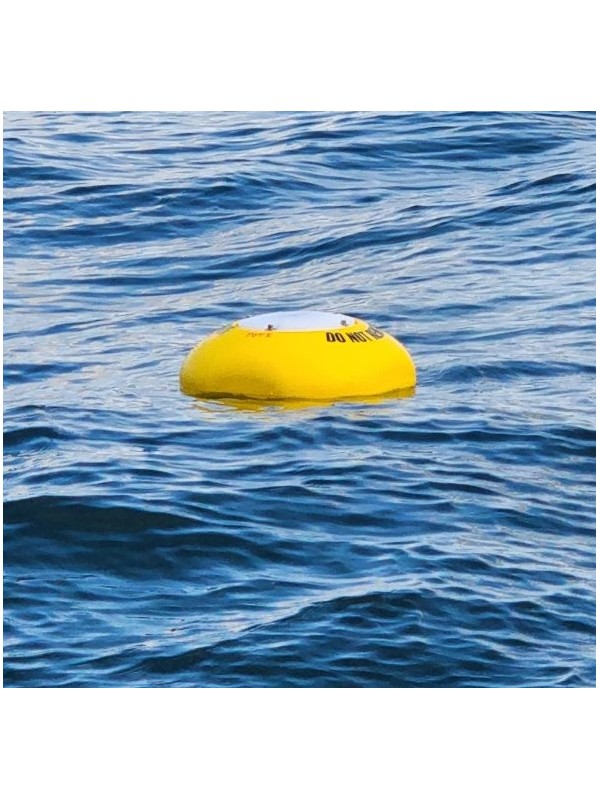

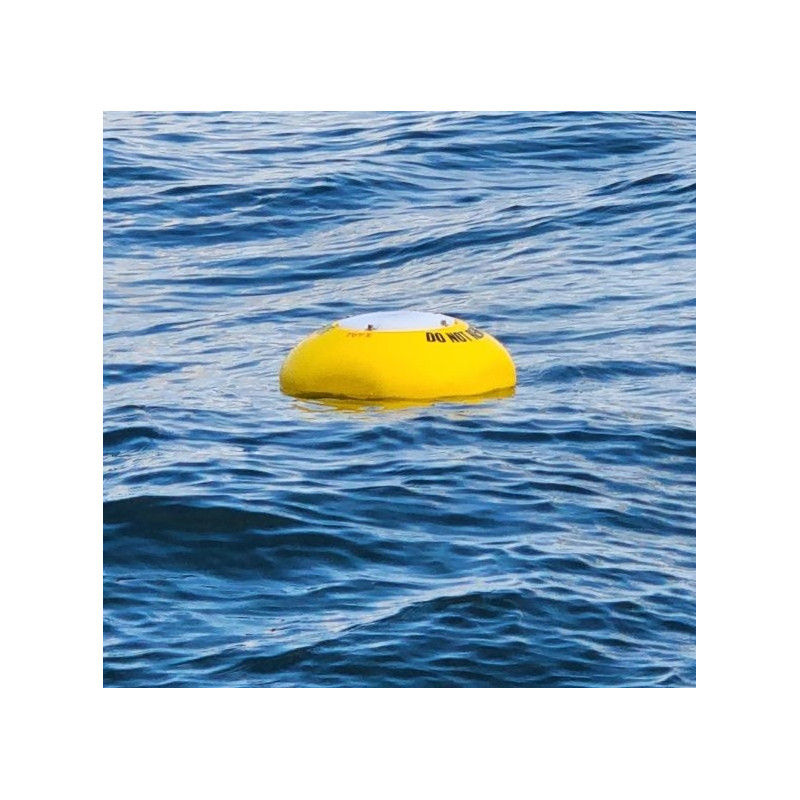

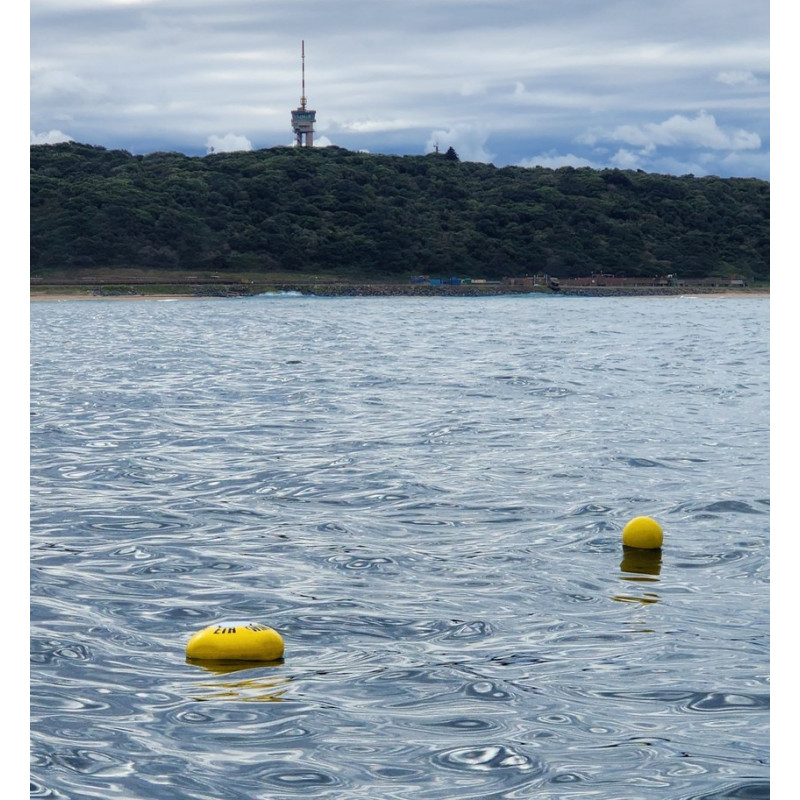

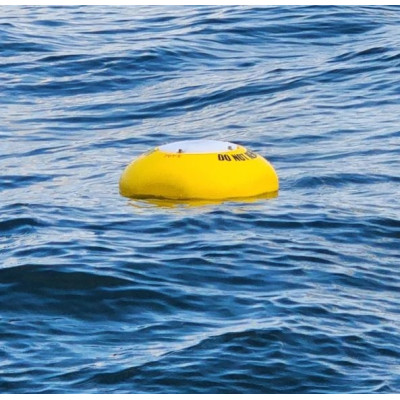

OBS-400 Wave Buoy
The OBS-400 is the most affordable metocean buoy that collects and transmits real-time full wave and sea surface temperature data. Superior elliptical design for the most accurate wave tracking and temperature measurements in its class.
OBS-400 WAVE BUOY
The OBS-400 Wave Buoy uses a combination of motion sensors and an electronic compass to measure the directional wave field with high accuracy. This yields the directional wave spectrum and all parameters that can be derived from it, such as the 1-dimensional energy-density spectrum and a range of bulk wave parameters (significant wave height, peak wave period, peak wave direction, etc.).
KEY FEATURES
- Real - time data (4G with 2G fallback)
- Bulk wave parameters
- Directional wave spectrum
- Battery-powered (lithium, primary or alkaline)
- GPS position & watch circle
- SST sensor
- Low purchase & operational costs
- Compact & light weight
- Easy to deploy & service
- Global SIM ( incl. data)

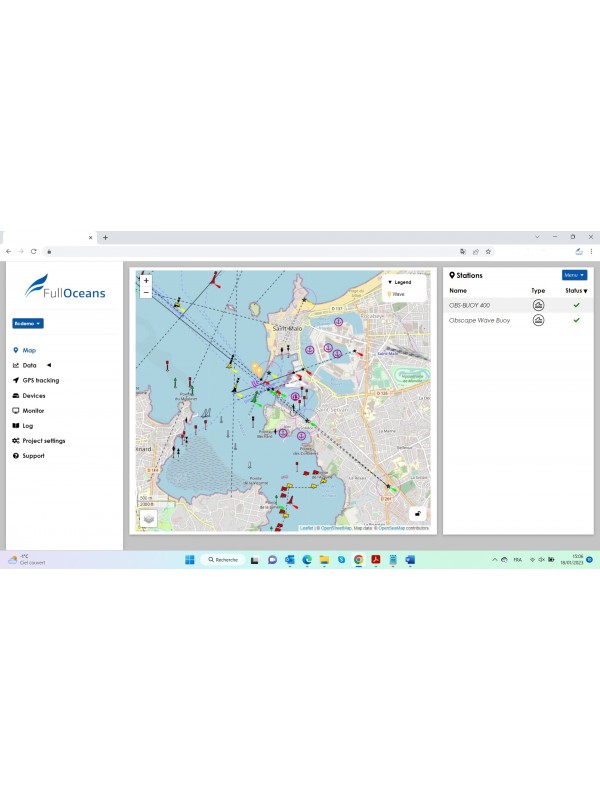

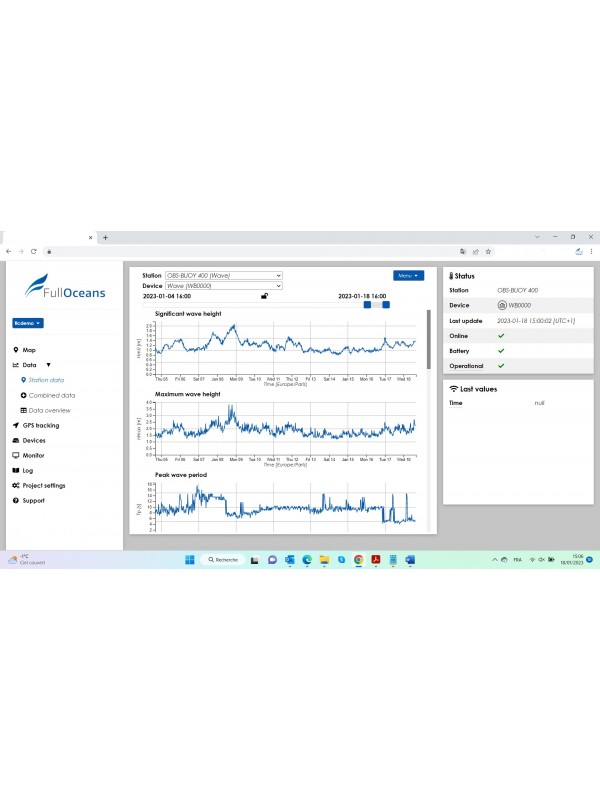

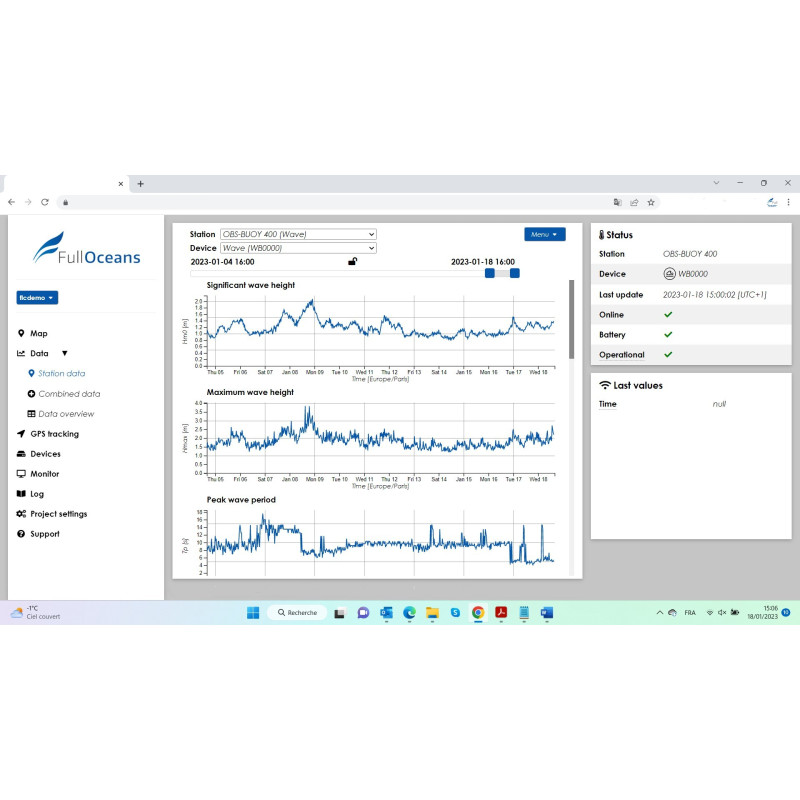

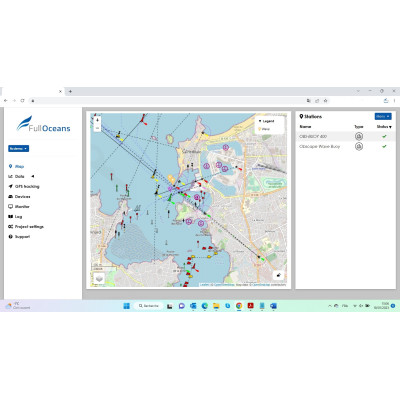

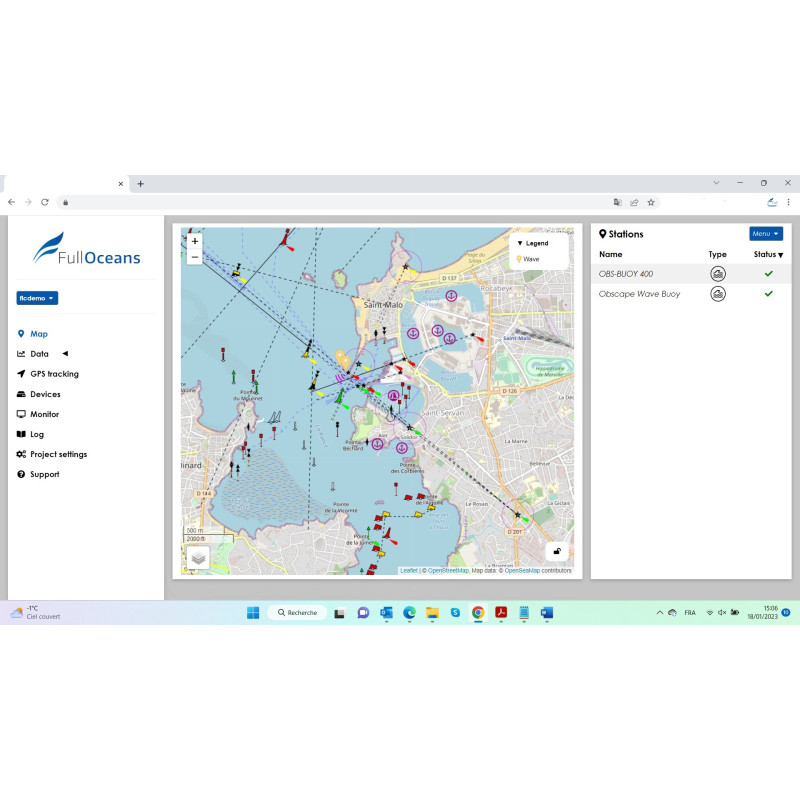

- Versatile data portal included
MAIN APPLICATION AREAS
- Marine & Coastal engineering
- Oceanographic research
- Environmental monitoring
- Work compliance monitoring
OBS-400
Data sheet
- Weight
- 6 kg
- Diameter
- 372 mm
- Height (without equipment)
- 225 mm
