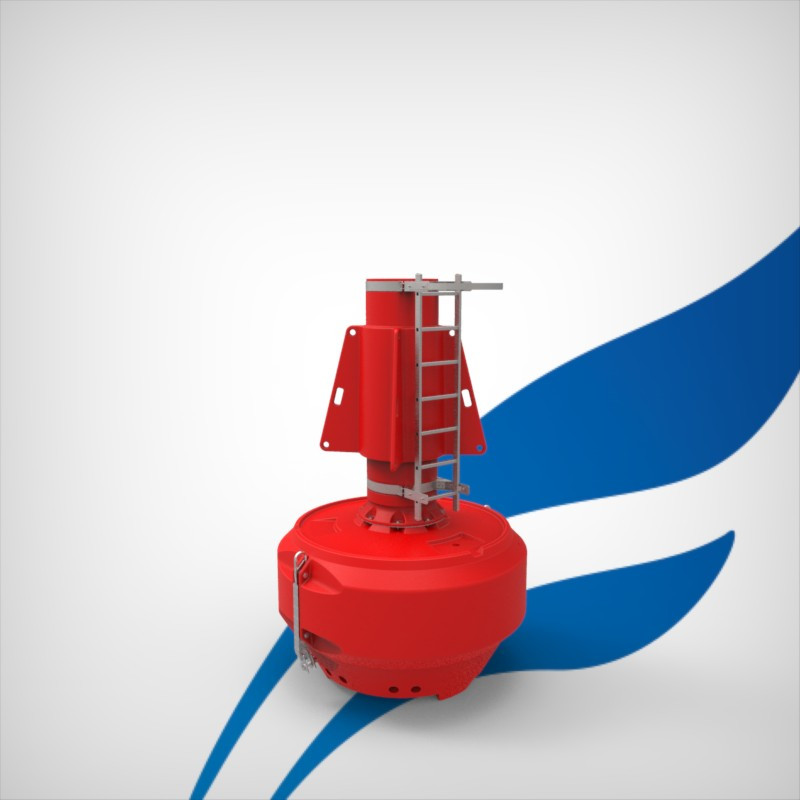

FLC2200 Lateral buoy - High visibility
For the most exposed conditions the FLC2200 will meet the requirements of most projects. The FLC2200 characteristics and prices will surprise the most demanding experts and purchaser: polyethylene shell, foam, radar reflector, 2 galvanized steel lifting and mooring points, cast iron ballasts, removable mast, high visibility daymark.
Optional equipment: Lanterns, service ladder, topmark.
HIGH QUALITY MATERIALS
Structure, Lifting and Mooring Points: S235 galvanized steel
Float and mast: UV-stabilized Polyethylene medium density
Foam: Polyurethane 40 kg/m³
Colors:Pigments matching IALA specifications directly integrated into the polyethylene during rotational moulding for no painting ever.
Ballasts: Cast Iron
Topmark (optional): Powder coated aluminium
Radar Reflector: Aluminium 5083/5086 marine grade
Eco friendly: Recyclable polyethylene. Heavy metal free. No ecological damages
RANGE OF USE
Current: Up to 6 knots
Mooring chain (recommended): Open long link chains 5xD ND30 and ND35
RECOMMENDED LANTERNS
All models are LED self-containing lanterns, manufactured by Carmanah (SABIK).
Available in Red, Green, White and Yellow according to the specification of each buoy.
 |
M650H: UP TO 4 NAUTICAL MILES The M650 offers up to 60 cd IALA peak intensity within a compact, lightweight yet durable design. With intelligent energy management systems and an intuitive on-board user interface, the M650H provides a practical solution for marinas, docks, barges, bridges, and more Connect to Carmarah website for all technical specifications & complete documentation |
 |
M850 60X WIDE: OVER 7 NM (3-6 NM ALL COLOURS) This high-efficiency, compact lantern is suitable for use in most solar locations. The M850 is over 30% more efficient than previous generation lanterns and is capable of an average 3 to 6 NM range with the ability to reach over 7 NM. Connect to Carmarah website for all technical specifications & complete documentation |
 |
M860 96E WIDE : UP TO 10 NM (3-6 NM ALL COLOURS) The M860 LED Marine Lantern is a premium, full-featured lantern suitable for achieving longer ranges in challenging insolation locations. Average range is 3 to 6 NM with the ability to reach up to 10 NM. Connect to Carmarah website for all technical specifications & complete documentation |
INFORMATION ON TOPMARKS
 |
| FLC2200 topmarks are in Powder Coated Aluminium |
INFORMATION ON MOORING DESIGNS
 |
Calculate your mooring line designs with the CALMAR software. A 3 steps, easy to use tools for the mooring lines of all FullOceans buoys. |
FLC2200-LAT-B-HV-STAR-LA
Scheda tecnica
- Diameter
- 2200 mm
- Height (without equipment)
- 3480 mm
- Volume
- 3335 l
- Draught
- 560 mm
- Freeboard
- 790 mm
- Mast
- 2054 mm
- Weight with ballast
- 720 kg
- Submergence
- 33 kg/cm
- Visible area
- 3.4 m² - 4.3 m² (High visibility)
- Focal plane
- 3065 mm with Carmanah M650, 3115 mm with Carmanah M850, 3220 mm with Carmanah M860
