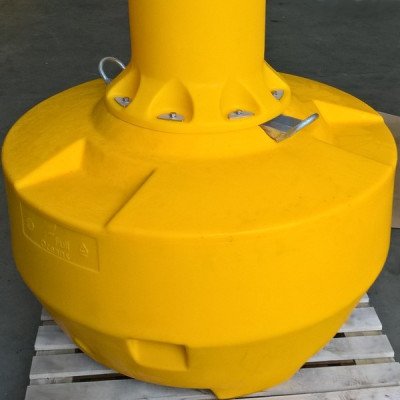

FLC1200 Boa di segnalazione speciale

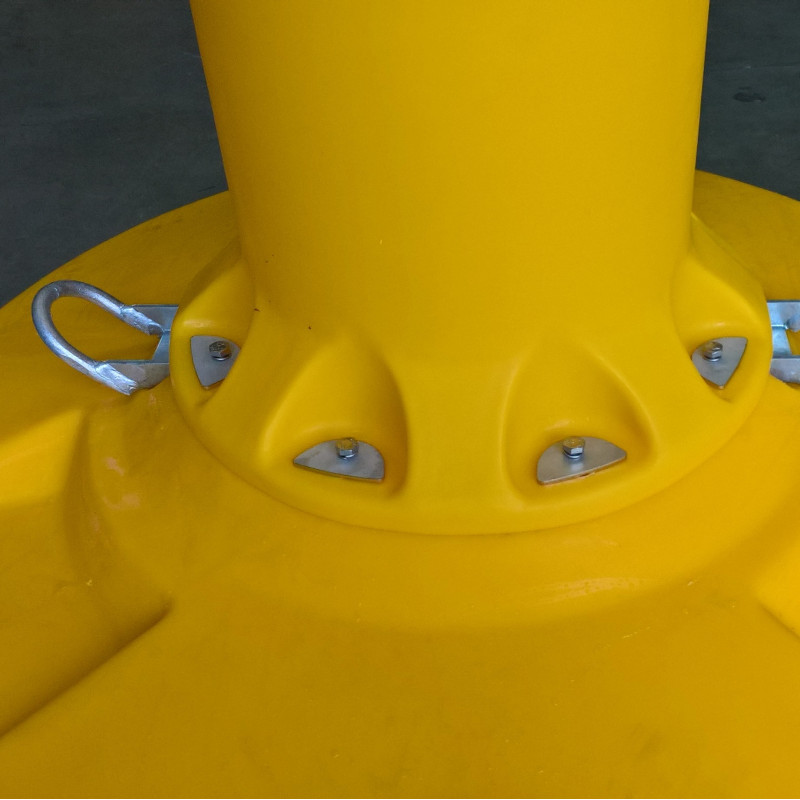

Your best ally for special mark navigation buoys (marker buoys, floating beacon), the FLC1200 has optimized performance regarding its small volume and benefits from FullOceans’ latest technologies: polyethylene shell, foam, 2 lifting points and 1 galvanized steel mooring eye, lifting handles, cast iron ballasts, removable mast, St Andrew cross.

Optional equipment: Marine lanterns.

Mast : Cylindric

Guarantee safe & secure checkout

MATERIALI DI ALTA QUALITÀ

Struttura, punti di sollevamento e ormeggio: acciaio zincato S235
Galleggiante e albero: polietilene grado 16 stabilizzato ai raggi UV,
Schiuma: poliuretano 40 kg/m³
Colori: pigmenti conformi alle specifiche IALA direttamente integrati nel polietilene durante lo stampaggio rotazionale, senza necessità di verniciatura.

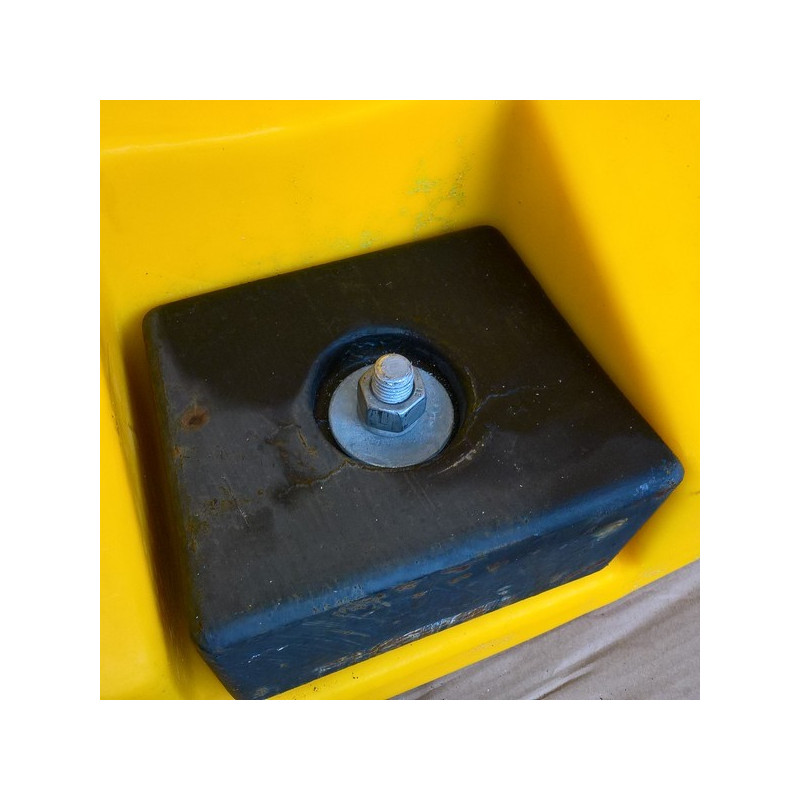

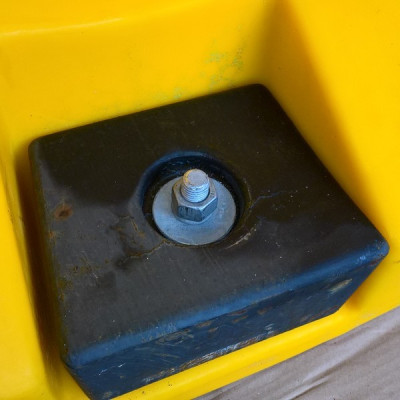

Zavorra: ghisa
Croce di Sant'Andrea Topmark: alluminio 5083/5086 grado marino
Ecocompatibile: polietilene riciclabile. Senza metalli pesanti. Nessun danno ecologico

RANGE DI UTILIZZO

Corrente: Fino a 4 nodi
Catena di ormeggio (consigliata): Catene a maglie lunghe aperte 5xD ND16, ND20 e ND25

FLC1200-SPEMARK-CYL

Scheda tecnica

Diameter
1200 mm
Height (without equipment)
1775 mm
Volume
570 l
Draught
290 mm
Freeboard
435 mm
Overall Height (with topmark)
2203 mm
Mast
1050 mm
Weight with ballast
122 kg
Submergence
11 kg/cm
Visible area
1,1 m²
Focal plane
1953 mm with Carmanah M550, 2058 mm with Carmanah M650H
