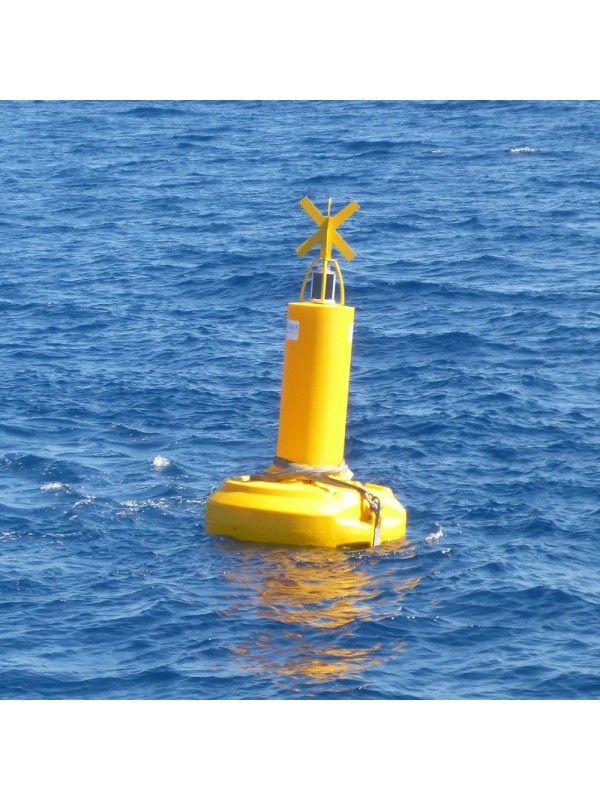

FLC1800 Special mark
New product

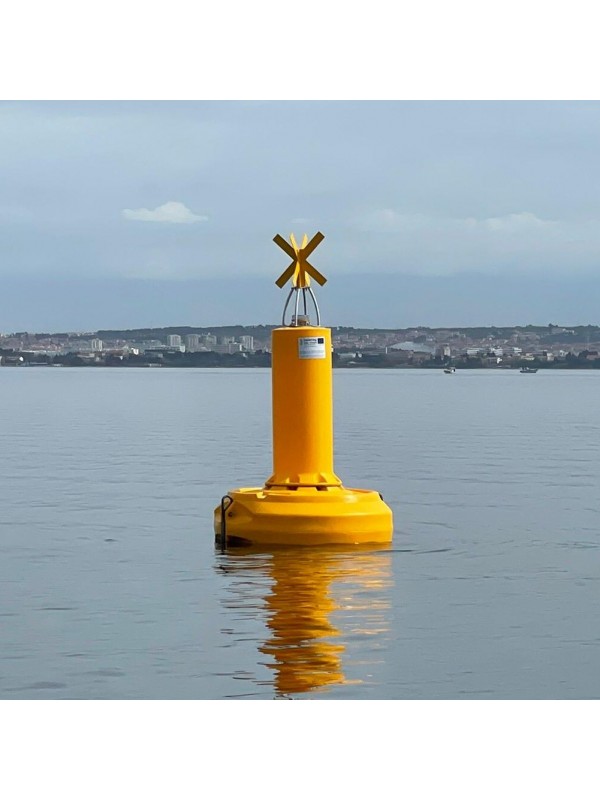

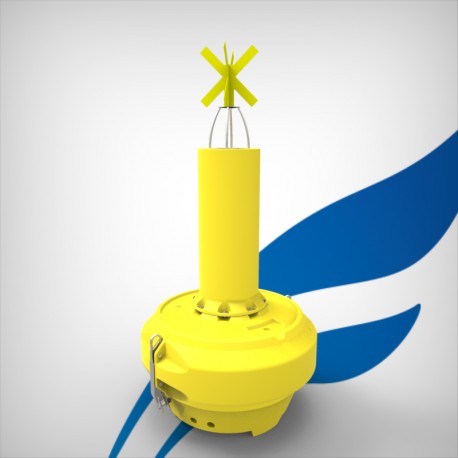

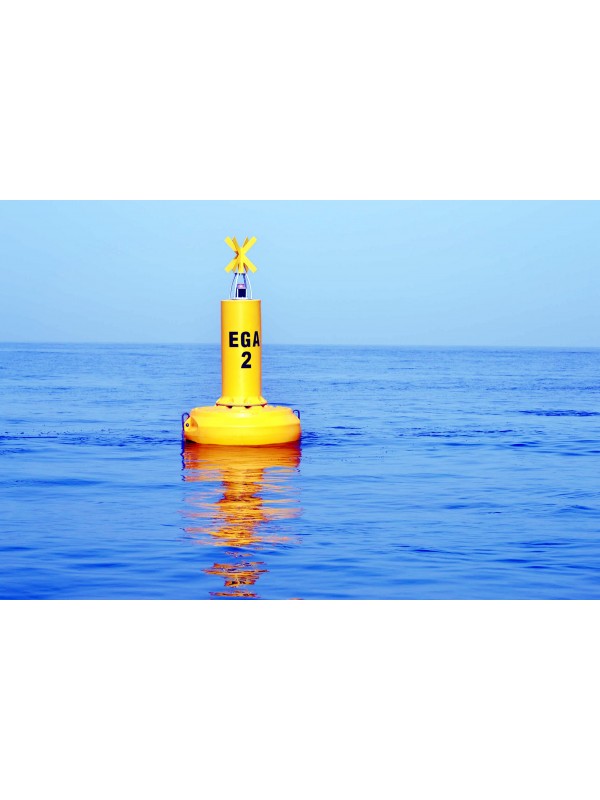

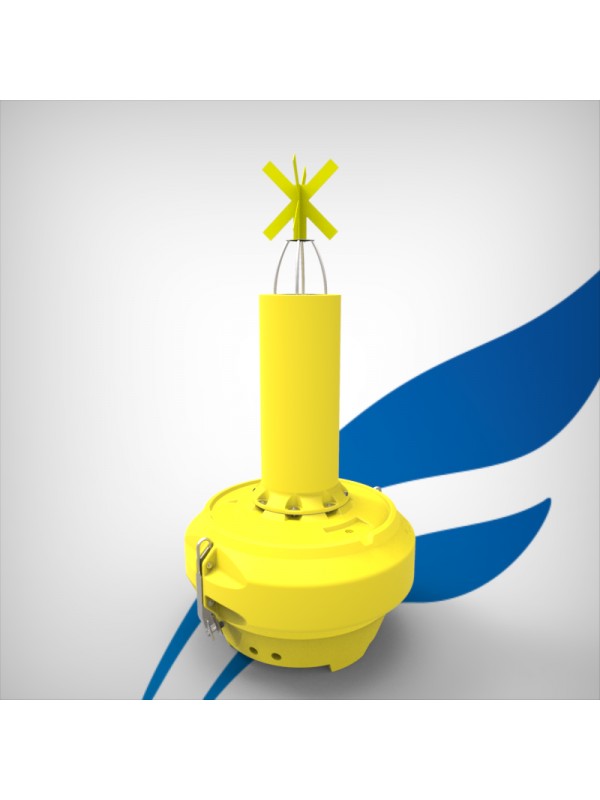

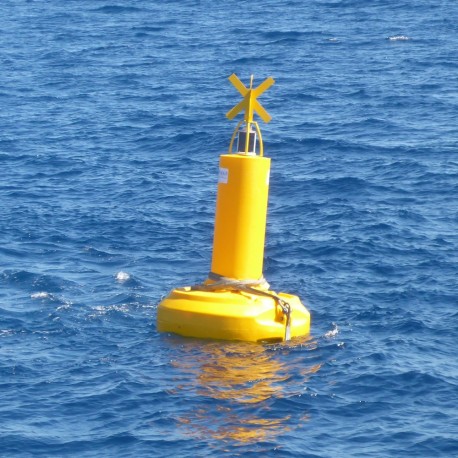

When conditions can be severe the FLC1800 offers an efficient and reliable solution: polyethylene shell, foam, radar reflector, 2 galvanized steel lifting and mooring points, cast iron ballasts, removable mast, St Andrew cross.

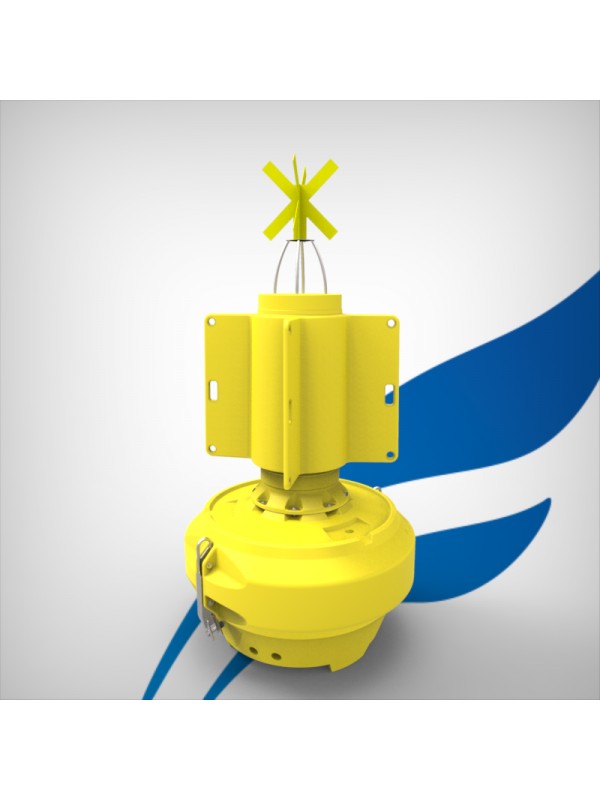

Optional equipment: Lanterns, high visibility day mark.
The FLC1800 will increase the confidence in maritime markup while keeping budget low.
Data sheet
| Diameter | 1800 mm |
| Height (without equipment) | 2710 mm |
| Volume | 1544 l |
| Draught | 560 mm |
| Freeboard | 521 mm |
| Mast | 1554 mm |
| Weight with ballast | 432 kg |
| Submergence | 21 kg/cm |
| Visible area | 2.3 m² - 3.3 m² (High visibility) |
| Focal plane | 2305 mm with Carmanah M650, 2355 mm with Carmanah M850, 2460 mm with Carmanah M860 |
More info
HIGH QUALITY MATERIALS
Structure, Lifting and Mooring Points: S235 galvanized steel
Float and mast: UV-stabilized Polyethylene medium density
Foam: Polyurethane 40 kg/m³
Colors:Pigments matching IALA specifications directly integrated into the polyethylene during rotational moulding for no painting ever.
Ballasts: Cast Iron

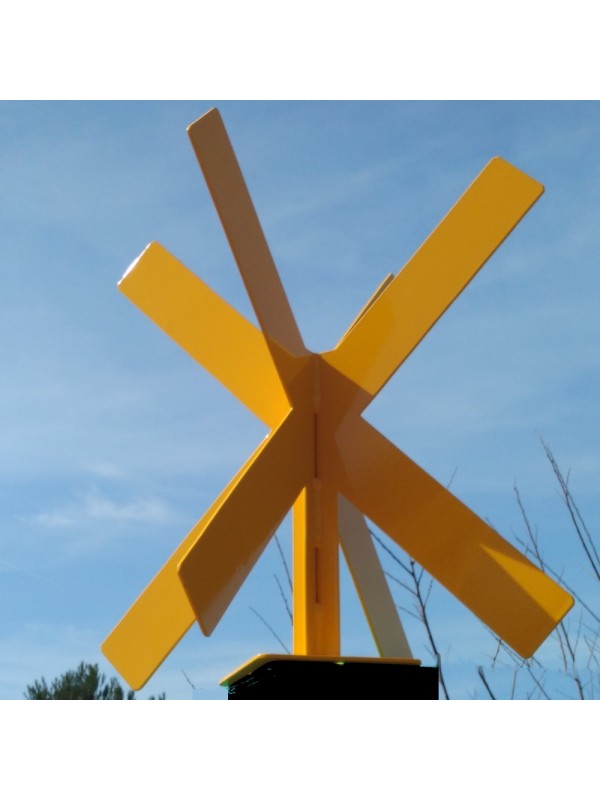

St Andrew cross: Powder coated aluminium 5083/5086 marine grade
Radar Reflector: Aluminium 5083/5086 marine grade
Eco friendly: Recyclable polyethylene. Heavy metal free. No ecological damages
RANGE OF USE
Current: Up to 6 knots
Mooring chain (recommended): Open long link chains 5xD ND30 and ND35
RECOMMENDED LANTERNS
All models are LED self-containing lanterns, manufactured by Carmanah (SABIK).
Available in Red, Green, White and Yellow according to the specification of each buoy.
 | M650H: UP TO 4 NAUTICAL MILES The M650 offers up to 60 cd IALA peak intensity within a compact, lightweight yet durable design. With intelligent energy management systems and an intuitive on-board user interface, the M650H provides a practical solution for marinas, docks, barges, bridges, and more Connect to Carmarah website for all technical specifications & complete documentation |
 | M850 60X WIDE: OVER 7 NM (3-6 NM ALL COLOURS) This high-efficiency, compact lantern is suitable for use in most solar locations. The M850 is over 30% more efficient than previous generation lanterns and is capable of an average 3 to 6 NM range with the ability to reach over 7 NM. Connect to Carmarah website for all technical specifications & complete documentation |
 | M860 96E WIDE : UP TO 10 NM (3-6 NM ALL COLOURS) The M860 LED Marine Lantern is a premium, full-featured lantern suitable for achieving longer ranges in challenging insolation locations. Average range is 3 to 6 NM with the ability to reach up to 10 NM. Connect to Carmarah website for all technical specifications & complete documentation |
INFORMATION ON MOORING DESIGNS
 | Calculate your mooring line designs with the CALMAR software. A 3 steps, easy to use tools for the mooring lines of all FullOceans buoys. |
