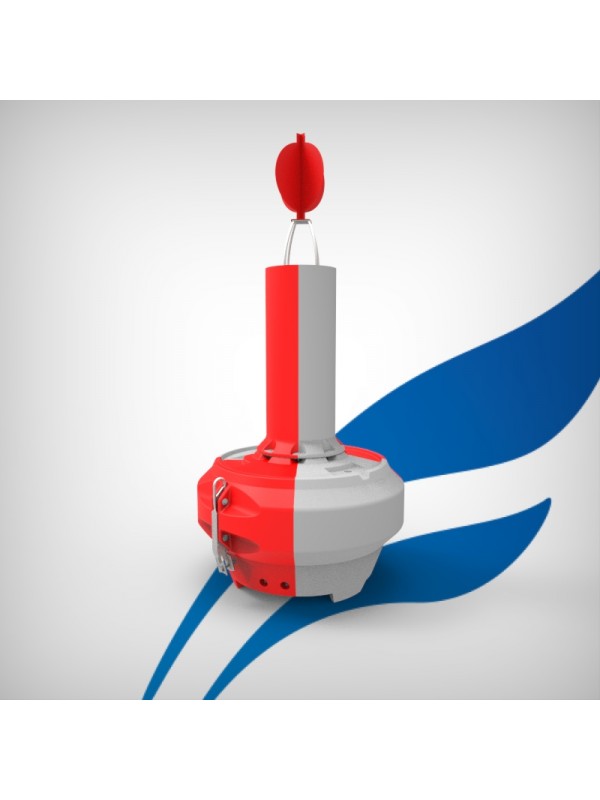

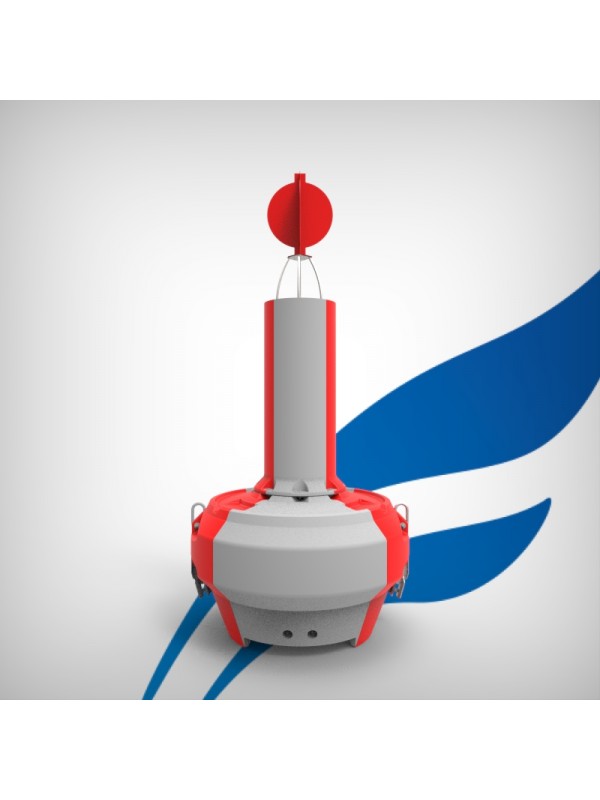

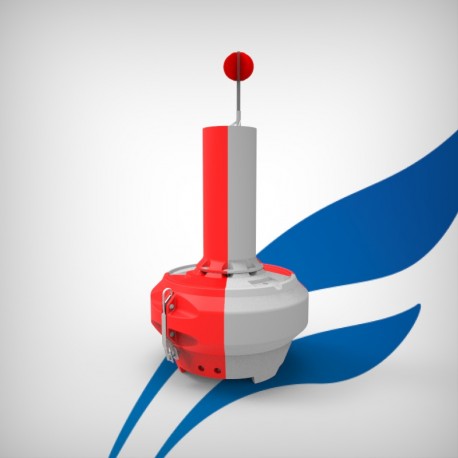

FLC1800 fairway buoy

Zustand: Neuer Artikel

When conditions can be severe the FLC1800 offers an efficient and reliable solution: polyethylene shell, foam, radar reflector, 2 galvanized steel lifting and mooring points, cast iron ballasts, removable mast, topmark.

Optional equipment: Lanterns

The FLC1800 will increase the confidence in maritime markup while keeping budget low.

Mehr Infos

An einen Freund senden
An einen Freund senden

FLC1800 fairway buoy
When conditions can be severe the FLC1800 offers an efficient and reliable solution: polyethylene shell, foam, radar reflector, 2 galvanized steel lifting and mooring points, cast iron ballasts, removable mast, topmark.
Optional equipment: Lanterns
The FLC1800 will increase the confidence in maritime markup while keeping budget low.
Empfänger :
Name Ihrer/es Freundin/es ^* :
E-Mailadresse Ihres Freundes ^* :
^* Pflichtfelder
oder Abbrechen
Ausdrucken

Technische Daten

Durchmesser	1800 mm
Höhe (ohne Ausrüstung)	2710 mm
Volumen	1544 l
Entwurf	560 mm
Freibord	521 mm
Mast	1554 mm
Gewicht mit Ballast	432 kg
Untertauchen	21 kg/cm
Sichtbarer Bereich	2,9 m²
Brennebene	2305 mm with Carmanah M650, 2355 mm with Carmanah M850, 2460 mm with Carmanah M860

Mehr Infos

HIGH QUALITY MATERIALS

Structure, Lifting and Mooring Points: S235 galvanized steel
Float and mast: UV-stabilized Polyethylene medium density
Foam: Polyurethane 40 kg/m³
Colors: Pigments matching IALA specifications directly integrated into the polyethylene during rotational moulding for no painting ever. White stripes painted with special high resistance PE paint.
Ballasts: Cast Iron

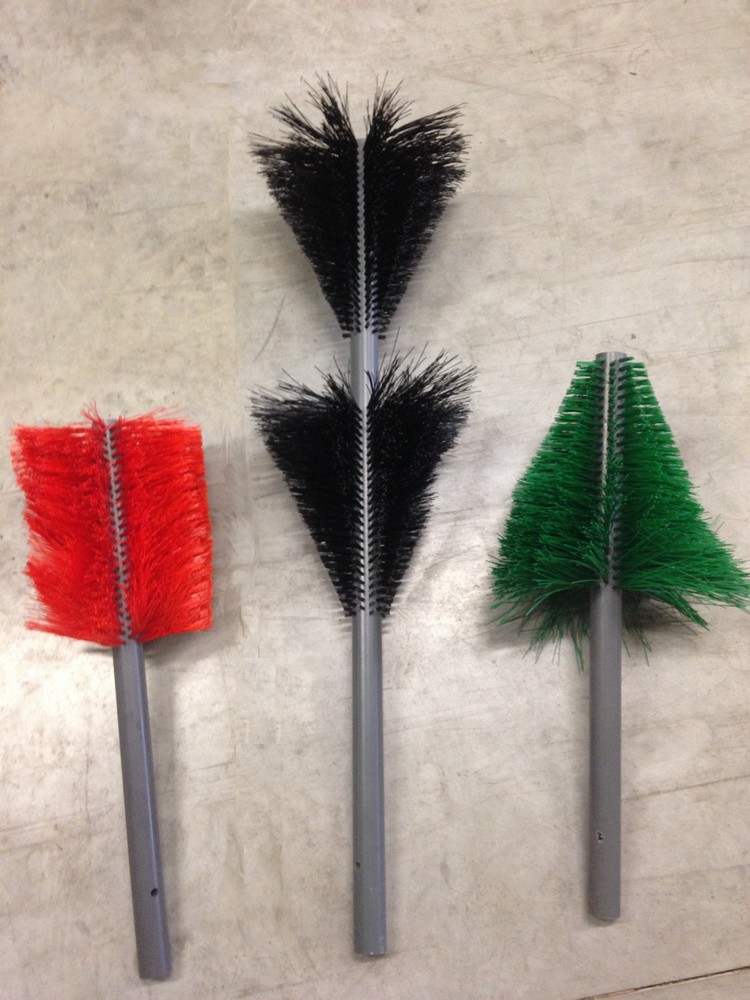

Topmark : Rigid PVC & Nylon or Powder coated aluminium
Radar Reflector: Aluminium 5083/5086 marine grade
Eco friendly: Recyclable polyethylene. Heavy metal free. No ecological damages

RANGE OF USE

Current: Up to 6 knots
Mooring chain (recommended): Open long link chains 5xD ND30 and ND35

RECOMMENDED LANTERNS

All models are LED self-containing lanterns, manufactured by Carmanah (SABIK).

Available in Red, Green, White and Yellow according to the specification of each buoy.

M650H: UP TO 4 NAUTICAL MILES

The M650 offers up to 60 cd IALA peak intensity within a compact, lightweight yet durable design. With intelligent energy management systems and an intuitive on-board user interface, the M650H provides a practical solution for marinas, docks, barges, bridges, and more

Connect to Carmarah website for all technical specifications & complete documentation

M850 60X WIDE: OVER 7 NM (3-6 NM ALL COLOURS)

This high-efficiency, compact lantern is suitable for use in most solar locations. The M850 is over 30% more efficient than previous generation lanterns and is capable of an average 3 to 6 NM range with the ability to reach over 7 NM.

Connect to Carmarah website for all technical specifications & complete documentation

M860 96E WIDE : UP TO 10 NM (3-6 NM ALL COLOURS)

The M860 LED Marine Lantern is a premium, full-featured lantern suitable for achieving longer ranges in challenging insolation locations. Average range is 3 to 6 NM with the ability to reach up to 10 NM.

Connect to Carmarah website for all technical specifications & complete documentation
