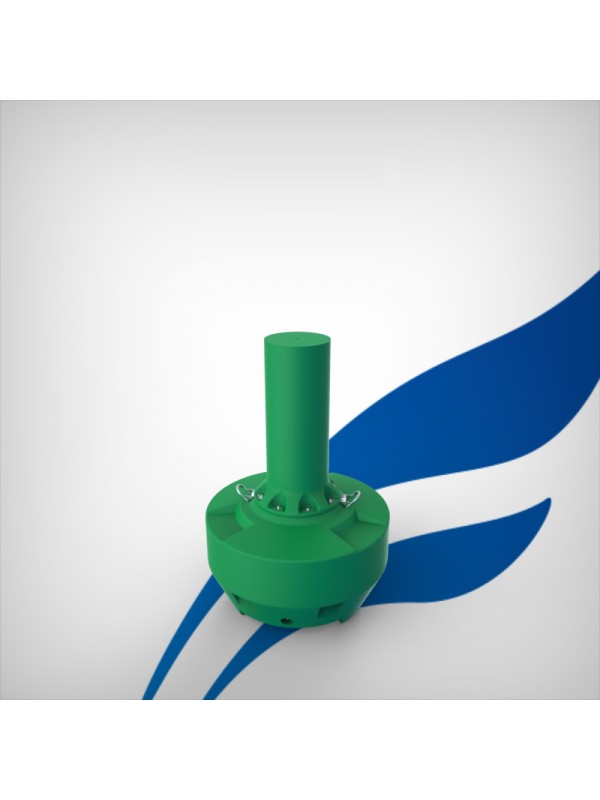

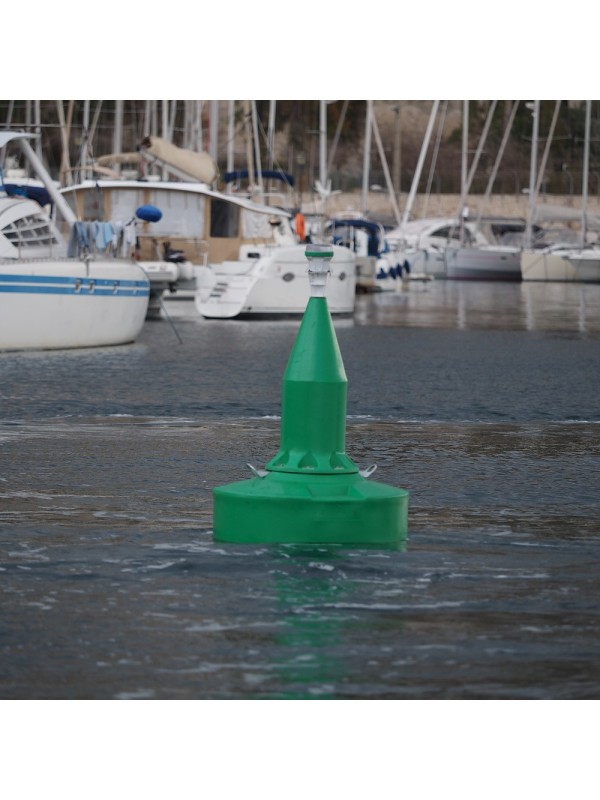

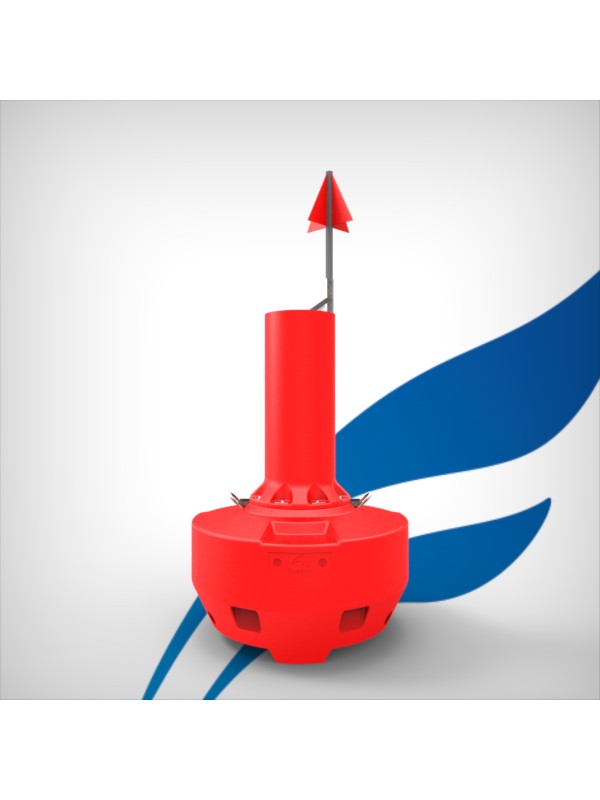

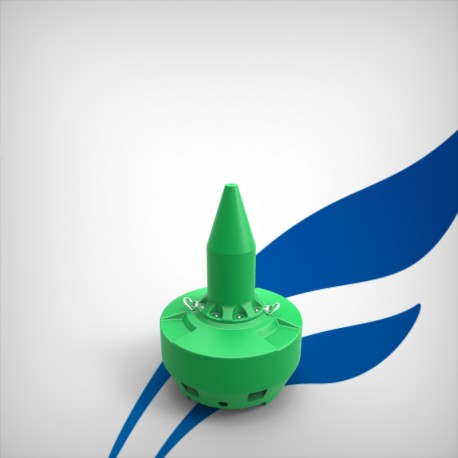

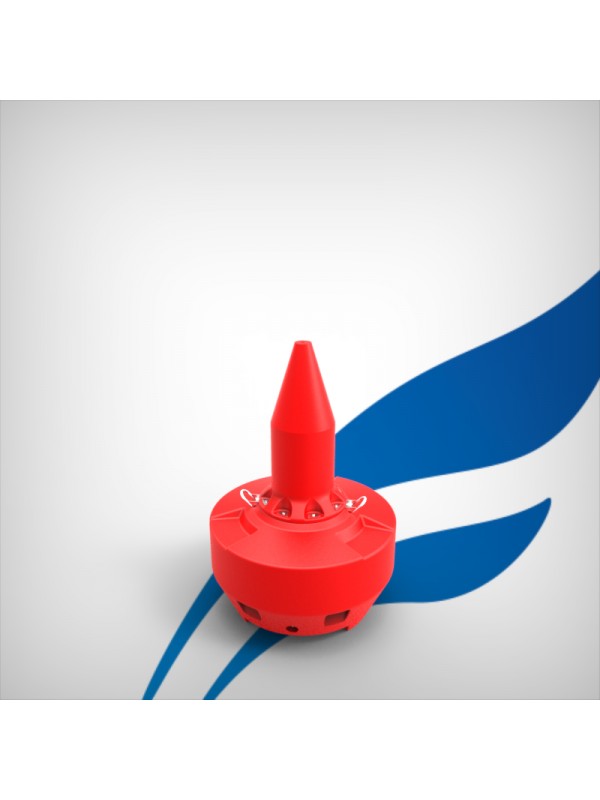

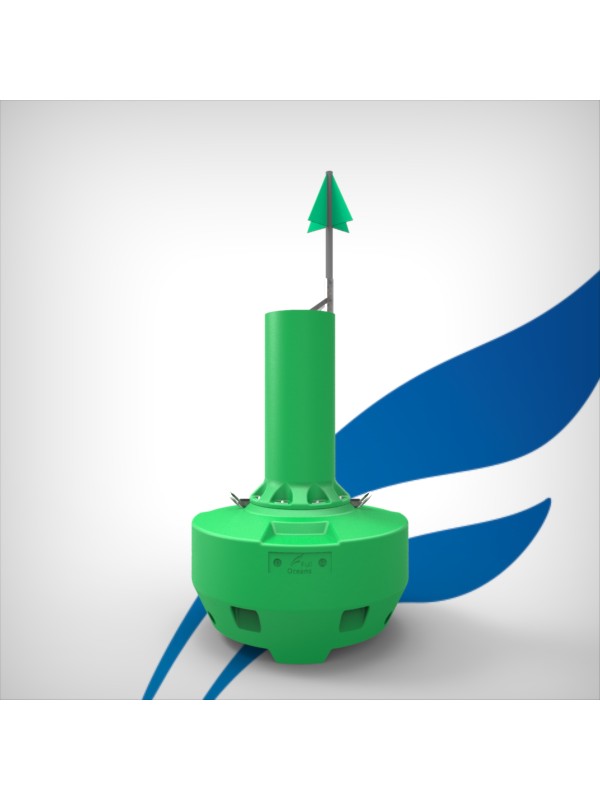

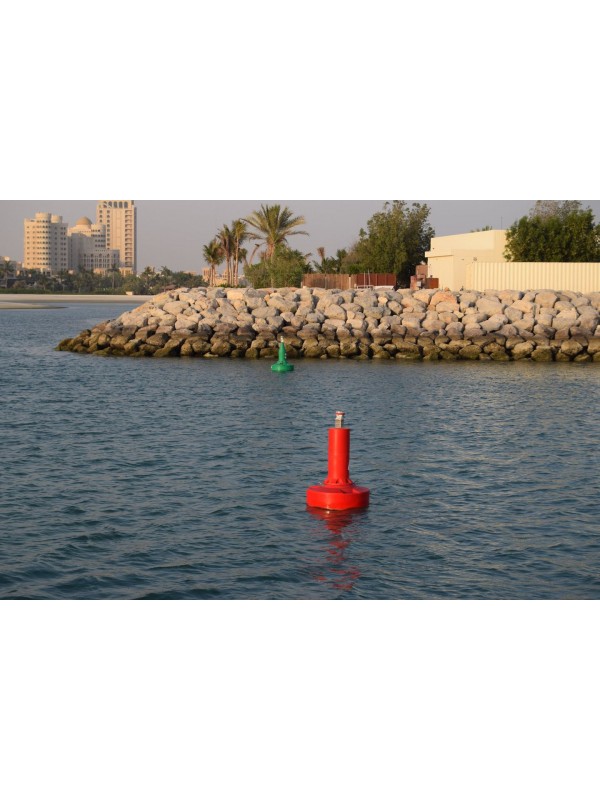

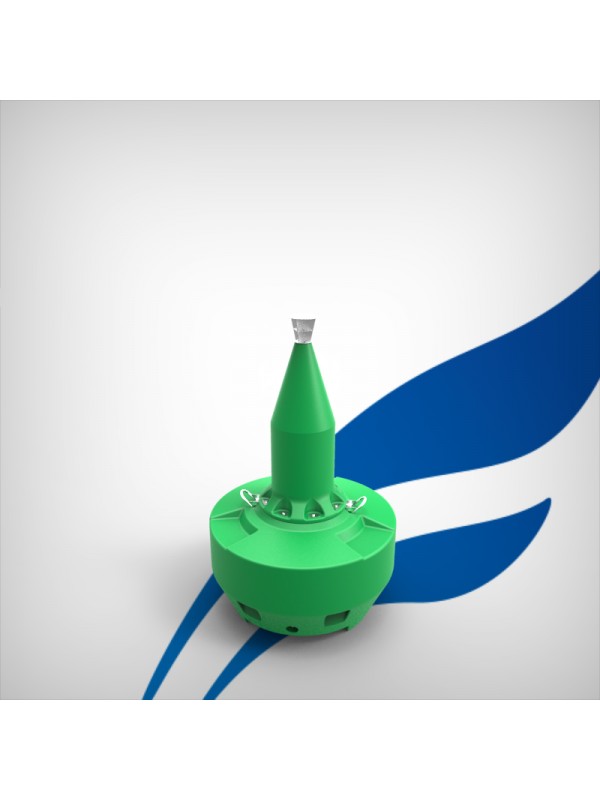

FLC1200 Lateral floating beacon

Condition: New product

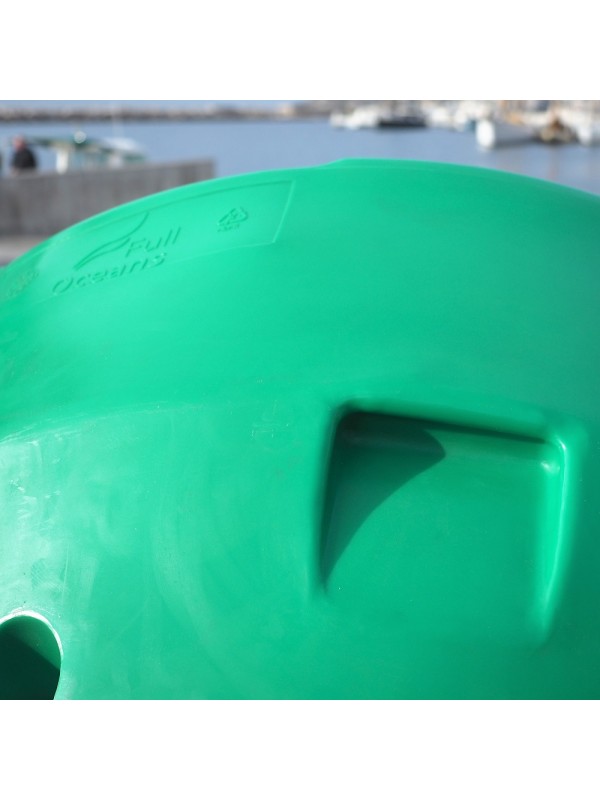

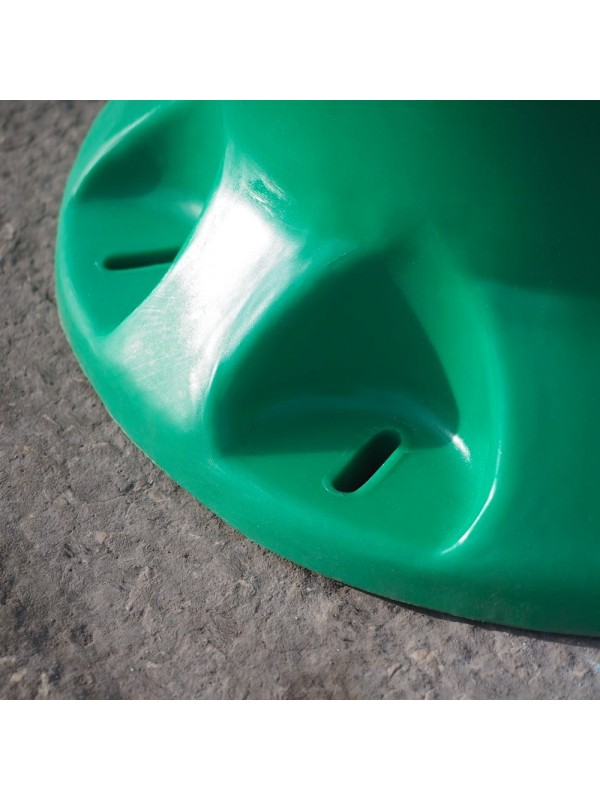

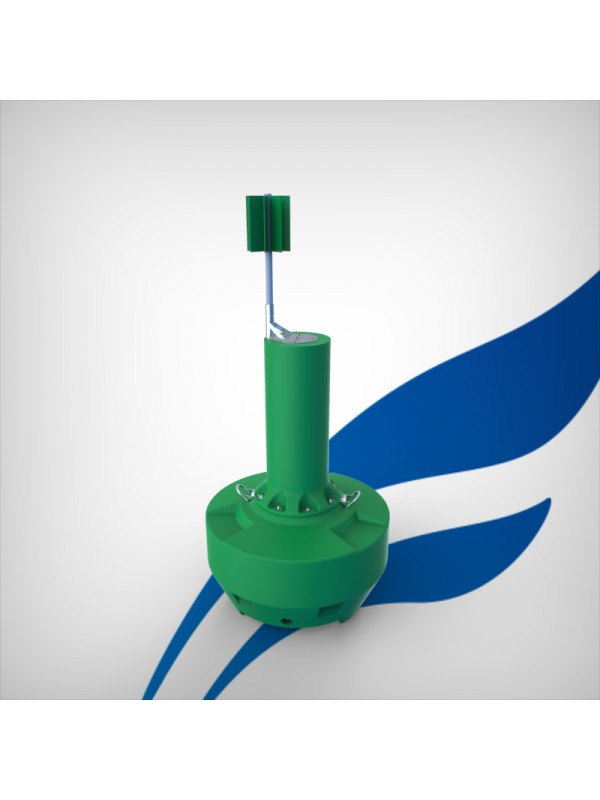

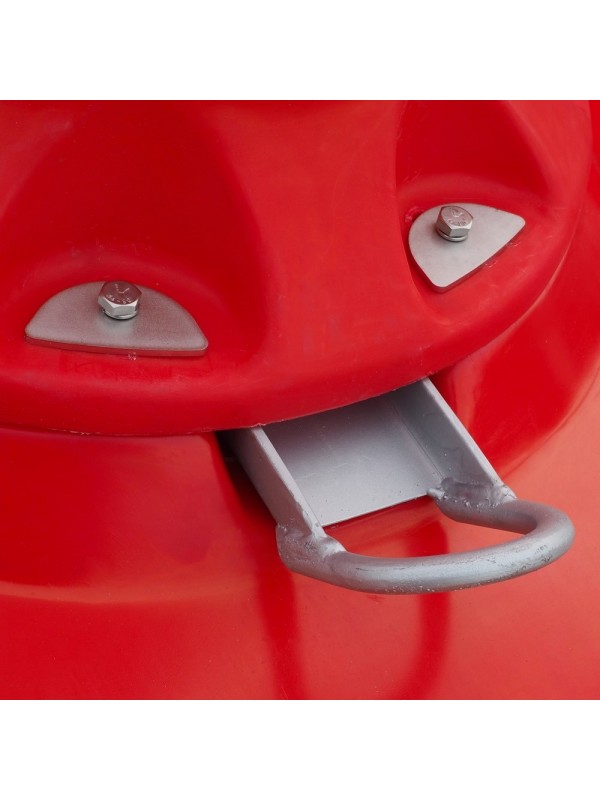

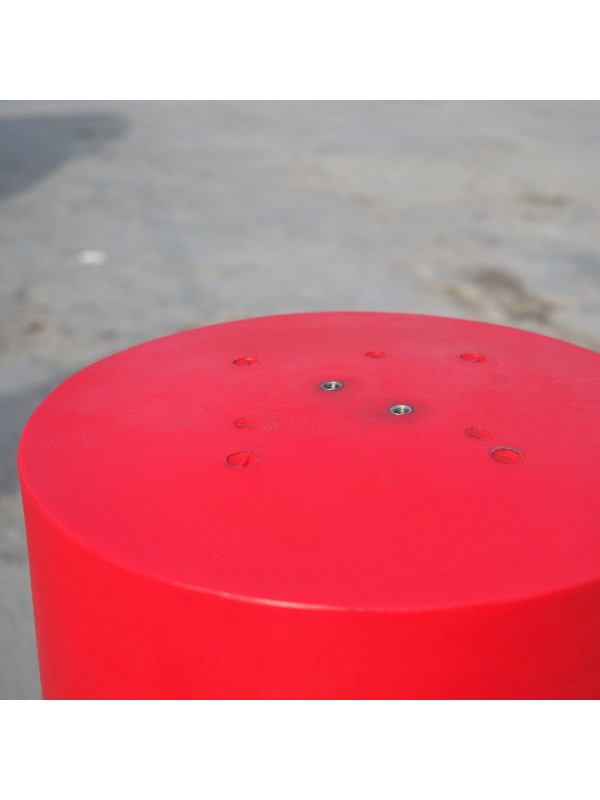

The FLC1200 floating beacon has optimized performance regarding its small volume and benefits from FullOceans’ latest technologies: polyethylene shell, foam, 2 lifting points and 1 galvanized steel mooring eye, lifting handles, cast iron ballasts, removable mast.

Optional equipment: Radar reflector, lanterns and brush top mark

More details

Send to a friend
Send to a friend

FLC1200 Lateral floating beacon
The FLC1200 floating beacon has optimized performance regarding its small volume and benefits from FullOceans’ latest technologies: polyethylene shell, foam, 2 lifting points and 1 galvanized steel mooring eye, lifting handles, cast iron ballasts, removable mast.
Optional equipment: Radar reflector, lanterns and brush top mark
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel
Print

Data sheet

Diameter	1200 mm
Height (without equipment)	1775 mm
Volume	570 l
Draught	290 mm
Freeboard	435 mm
Overall Height (with topmark)	2904 mm

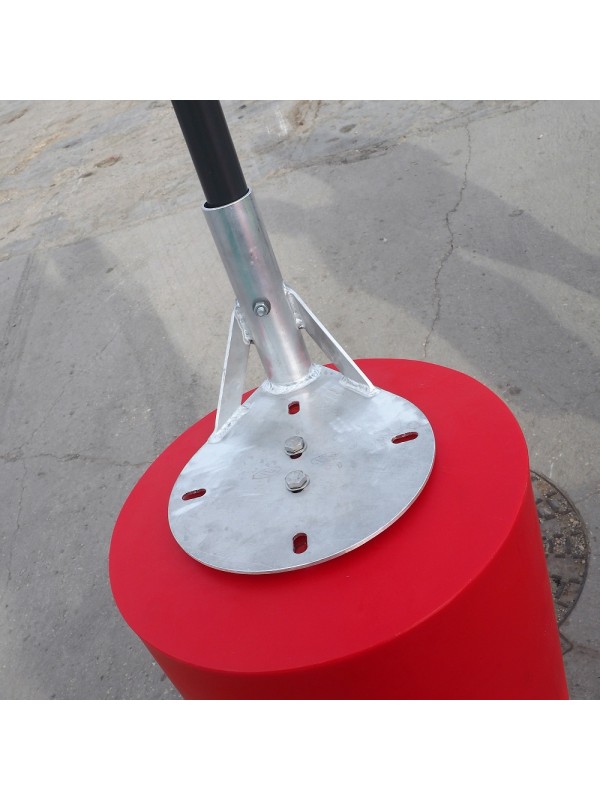

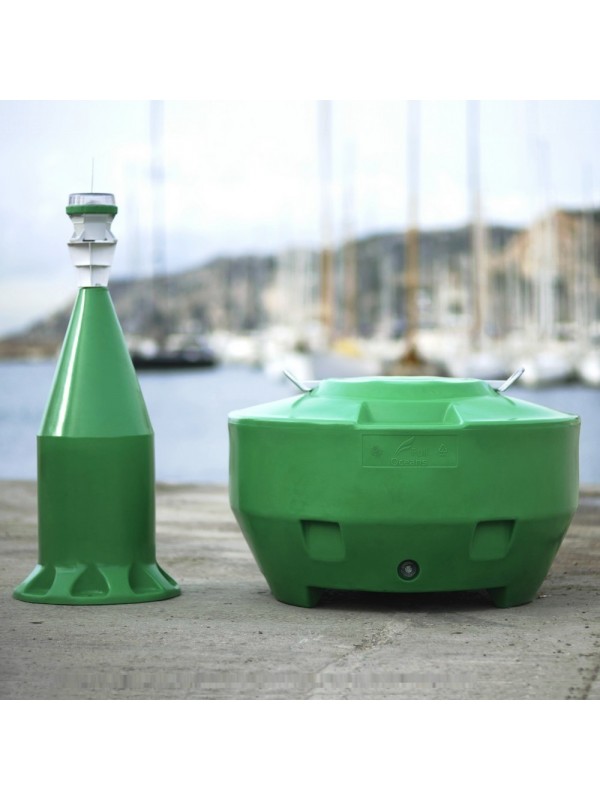

Mast	1050 mm
Weight with ballast	125 kg
Submergence	11 kg/cm
Visible area	1,1 m²
Focal plane	1675 mm with radar reflector and Carmanah M550, 1780 mm with radar reflector and Carmanah M650H

More info

HIGH QUALITY MATERIALS

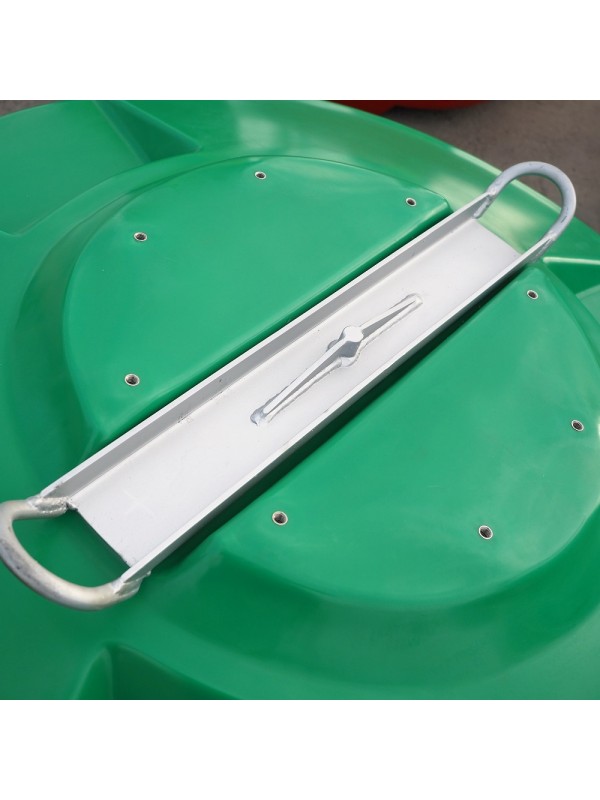

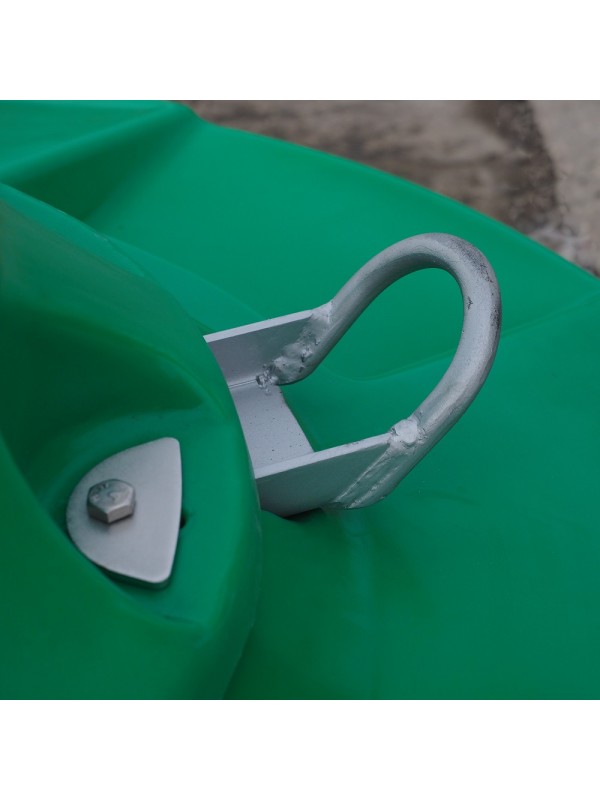

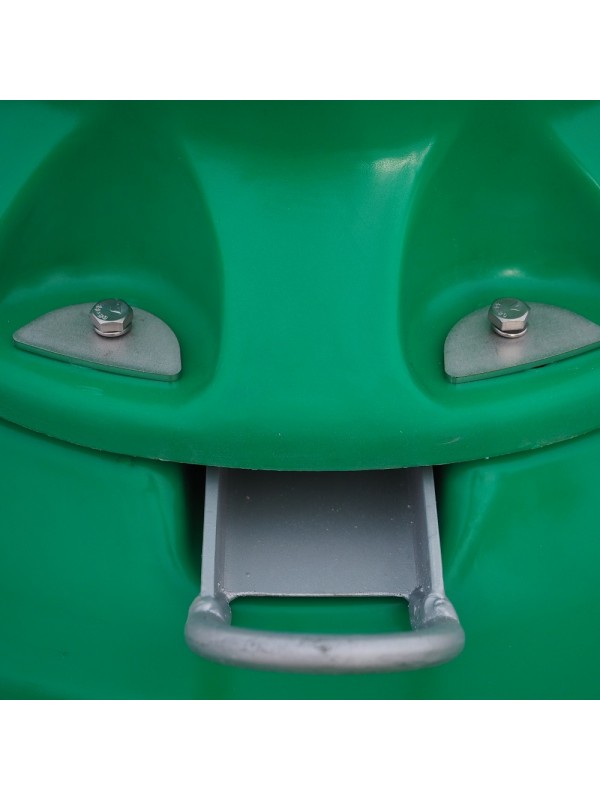

Structure, Lifting and Mooring Points: S235 galvanized steel
Float and mast: UV-stabilized Polyethylene high density, Icorene 3575 PE
Foam: Polyurethane 40 kg/m³

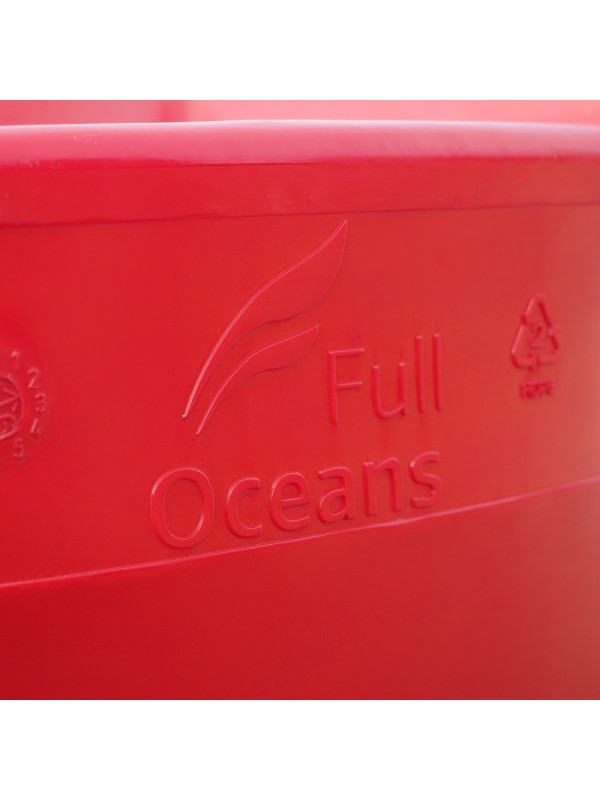

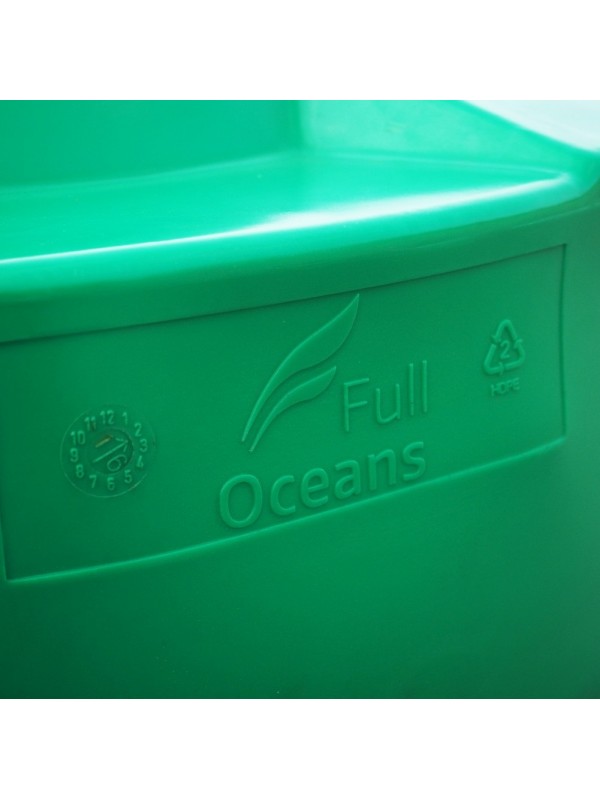

Colors:Pigments matching IALA specifications directly integrated into the polyethylene during rotational moulding for no painting ever.

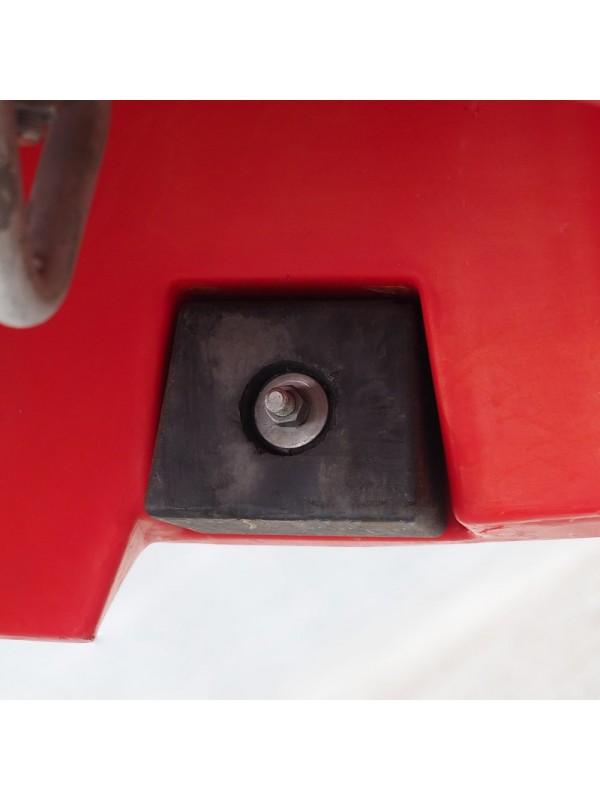

Ballasts: Cast Iron
Topmark (optional): Rigid PVC & Nylon

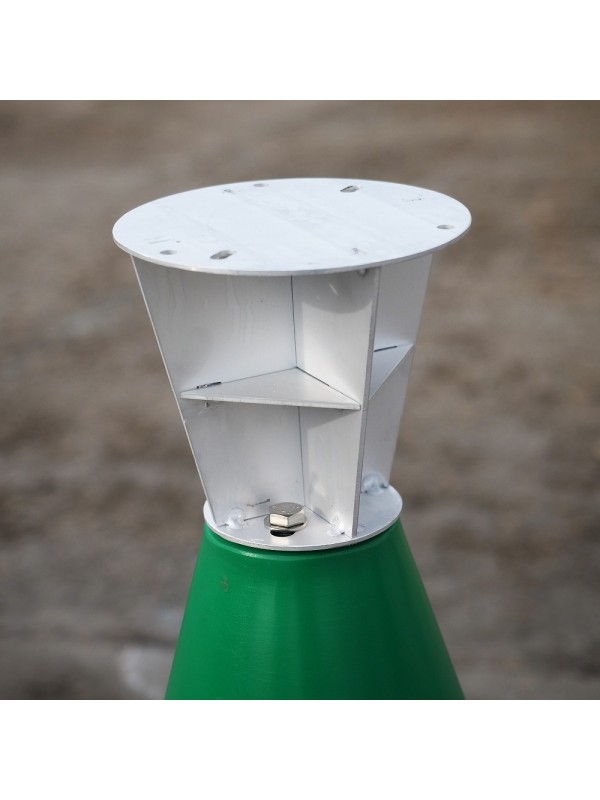

Radar Reflector (optional): Aluminium 5083/5086 marine grade
Eco friendly: Recyclable polyethylene. Heavy metal free. No ecological damages

RANGE OF USE

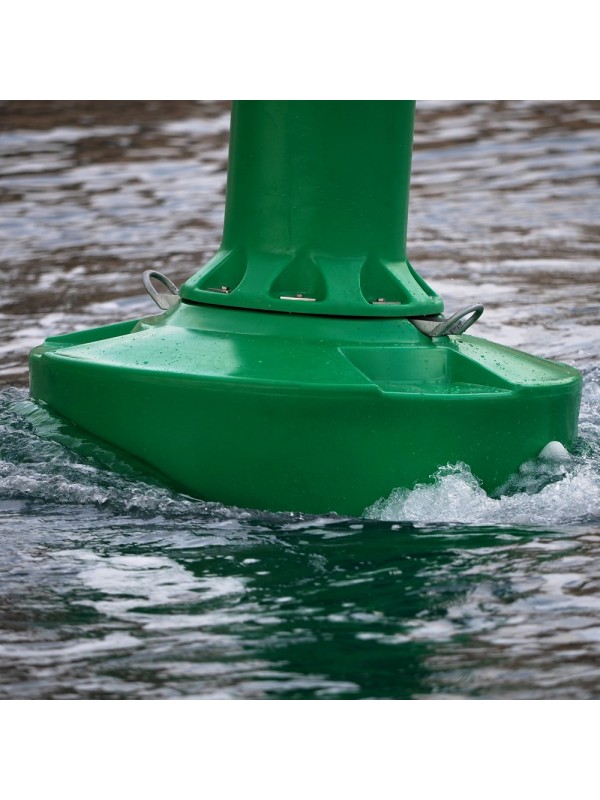

Current: Up to 4 knots / check the video of tests in current
Mooring chain (recommended): Open long link chains 5xD ND16, ND20 and ND25

RECOMMENDED LANTERNS

All models are LED self-containing lanterns, manufactured by Carmanah (SABIK).

Available in Red, Green, White and Yellow according to the specification of each buoy.

M550: PRIVATE AID-TO-NAVIGATION, UP TO 3 NM

The M550 one to three nautical mile range marine lantern leverages custom optics, high-efficiency solar panels, and premium materials to deliver 15 times the brightness and three times the range of its M502 predecessor. At just 0.8 lb (0.37 kg) and 2.2 inches (56 mm) high, the unit is the most efficient, small-format solar marine lantern on the market.

Connect to Carmarah website for all technical specifications & complete documentation

M650H: UP TO 4 NAUTICAL MILES

The M650 offers up to 60 cd IALA peak intensity within a compact, lightweight yet durable design. With intelligent energy management systems and an intuitive on-board user interface, the M650H provides a practical solution for marinas, docks, barges, bridges, and more

Connect to Carmarah website for all technical specifications & complete documentation
